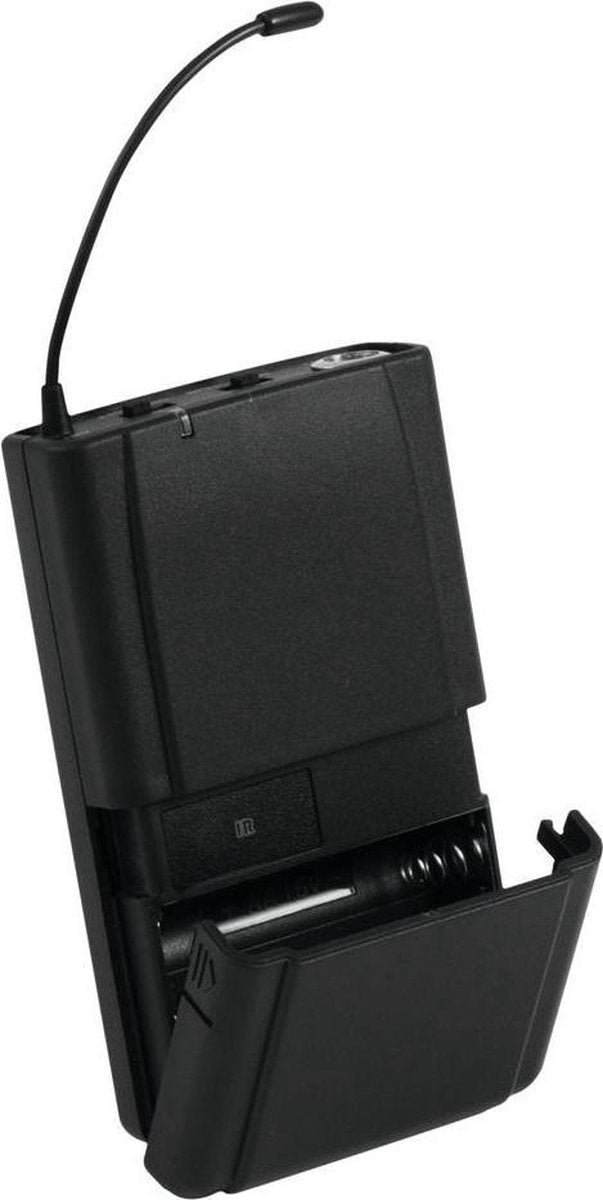

Pocket transmitter with headset microphone for WAMS-10BT

Pocket transmitter for the portable PA system WAMS-10BT
Operation with 863-865 MHz
Incl. headset microphone with latchable 3.5 mm plug
Great speech reproduction for stage and presentations
Infrared interface for easy and error-free synchronization with the receiver via infrared signal
Transmitting power 10 mW
Mute switch
Level matching switch MIC/0 dB/-10 dB
Power LED
Belt clip
Operation via 2 x 1.5 V batteries (type AA), not included
License-free and approved in the EU
Carrier frequency:


Coverage:
50 m (with line-of-sight)

RF power output:
10 mW

Frequency range:
50-16000 Hz

T.H.D.:
<1 % at 1 kHz

Connection:
3.5 mm jack screw connection

Battery:
2 x 1.5 V, type AA

Battery life:
approx. 8 hours

Power consumption:
approx. 100 mA

Dimensions:
26 x 64 x 105 mm (w/o antenna)

Weight:
86 g (w/o batteries)
