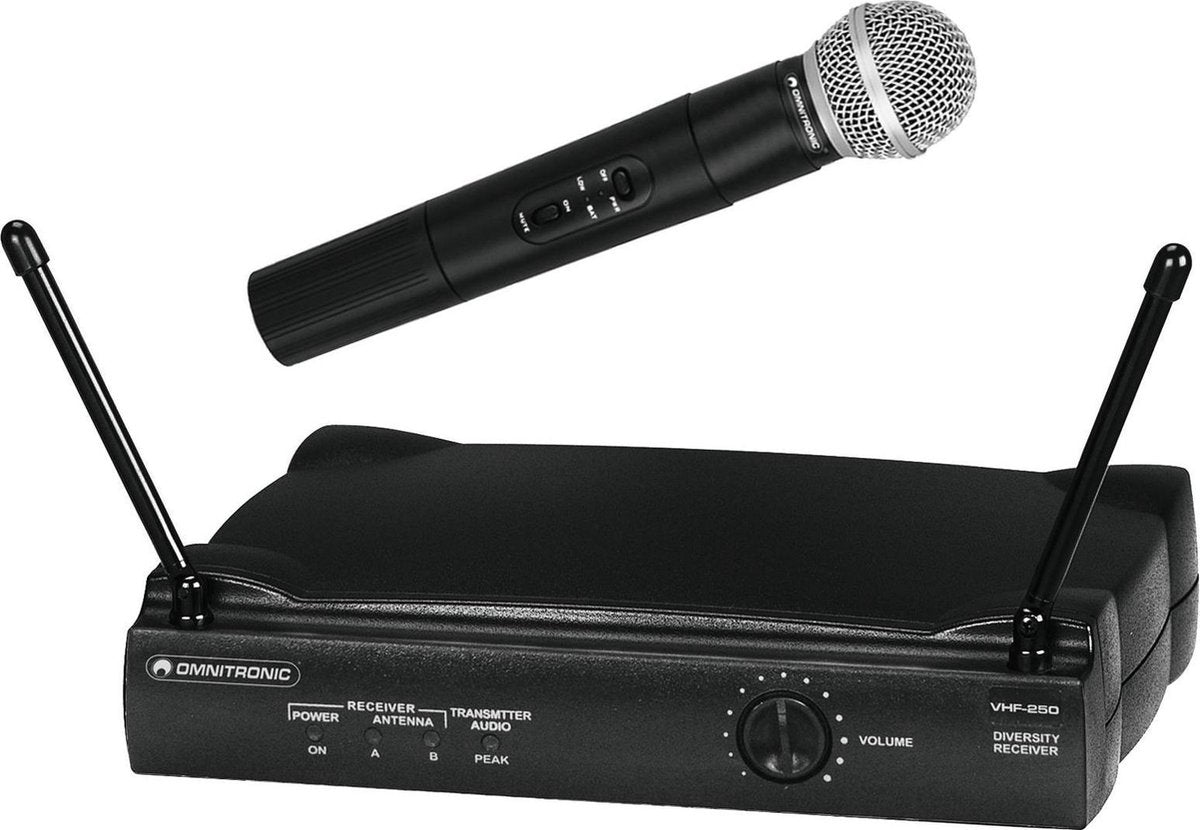

Complete VHF diversity wireless microphone system

Set includes receiver unit and one wireless microphone
Matches transmitter TM-250 with the same carrier frequency
Switching diversity system with two folding antennas
Operation with fixed VHF frequency 214.000 MHz
LED indicator for power, signal input and AF peak
Output level control
Squelch control to eliminate noise bursts
6.3 mm and XLR output
Microphone with gain control
Operation of the receiver unit via supplied power unit
Power supply of microphone via 9 V battery (supplied)
1 m jack-jack cable included
License-free and approved in Germany and other EU countries
Wireless receiver:
Diversity, one channel

Carrier frequency:
VHF 214.000 MHz

Frequency stability:
±0.005 %

S/N-ratio:
>90 dB

Selectivity:
>80 dB

Dynamic range:
>80 dB

Modulation method:
FM-frequency modulation

Frequency range:
50 Hz - 20000 Hz (±3 dB)

Audio output:
Mono 6.3 mm jack socket, XLR socket

Power supply:
230 V AC, 50 Hz; via 17 V DC, 300 mA power unit incl. in delivery

Power consumption:
5 W

Dimensions:
195 x 140 x 40 mm

Weight:
500 g

Wireless microphone:


RF power output:
8.5 mW

Coverage:
50 m (with line-of-sight)

Power supply:
1 standard 9 V battery

Current consumption:
approx. 65 mA

Battery life
approx. 6 hours

Dimensions (D x H):
50 x 260 mm

Weight:
360 g
