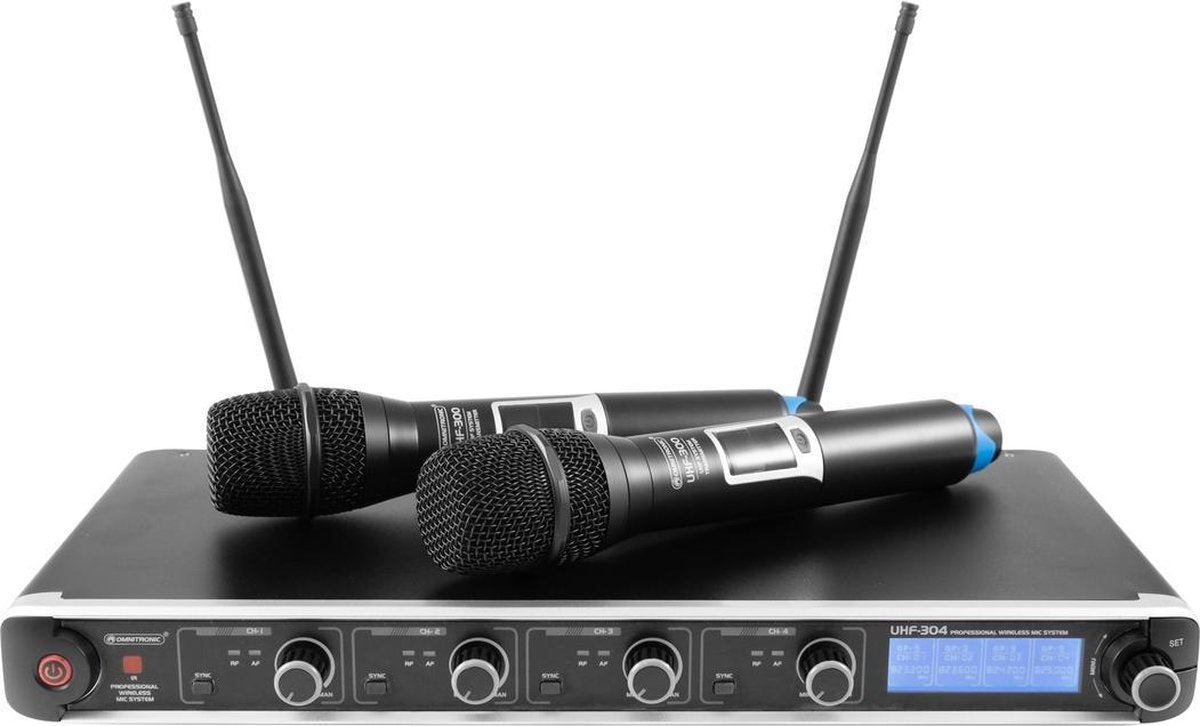

4-channel UHF PLL microphone system

4-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
Operation in the license-free frequency ranges 823-832 MHz and 863-865 MHz
93 preset channels in 10 channel groups
Operation range with line of sight approx. 60 meters
Easy and error-free synchronization between receiver and transmitters via infrared signal
LCDs for group, frequency and channel
LEDs for carrier and audio signal
4 separate channels with volume controls
Balanced XLR output per channel
Unbalanced 6.3 mm jack for mixed signal output
Jack cable included
Removable antennas (BNC connection)
Incl. mounting brackets for 483 mm rack installation
4 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
Matching pocket transmitter can be ordered separately
License-free and approved in large parts of the EU (please check on a country-by-country basis)

Receiver

Housing design: (19) 48,3 cm rack installation possible
Height unit: 1 U
Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)

Microphone

Battery: 2 x Mignon (AA) (not included)
Mute function: No
Polar pattern: Unidirectional
Power connection: Battery/battery pack (not included)

System:
Non-diversity, 4 channels

Carrier frequency:
823-832 MHz and 863-865 MHz

Receiving frequencies:
93

Coverage:
60 m (with line-of-sight)

RF power output:
10 mW

Modulation method:
FM

Frequency stability:
10 ppm

Sensitivity:
6 dBµV

S/N ratio:
>80 dB

Frequency range:
50-18000 Hz (±3 dB)

T.H.D.:
<0.5 % at 1 kHz

Audio outputs:


Mic:
4 x XLR, bal.

Mix:
6.3 mm jack, unbal.

Power supply:


Receiver:
100-240 V AC, 50/60 Hz via supplied power unit

Frequency band:
UHF 823 - 832 MHz; UHF 863 - 865 MHz

Frequency range:
50 - 18,000 Hz

Weight:
3,00 kg

Receiver

Width:
41 cm

Depth:
23,5 cm

Height:
4,7 cm

Power consumption:
6 W

Power connection:
Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m)

Material:
Metal

Power supply:
110-240 V AC, 50/60 Hz
14 V DC 500 mA

Microphone

Length:
25 cm

Diameter:
5,1 cm

Battery:
2 x Mignon (AA)

Polar pattern:
Unidirectional

Power connection:
Battery/battery pack

Material:
Plastic

Weight:
0,23 kg
