Wireless microphone system with UHF PLL technology

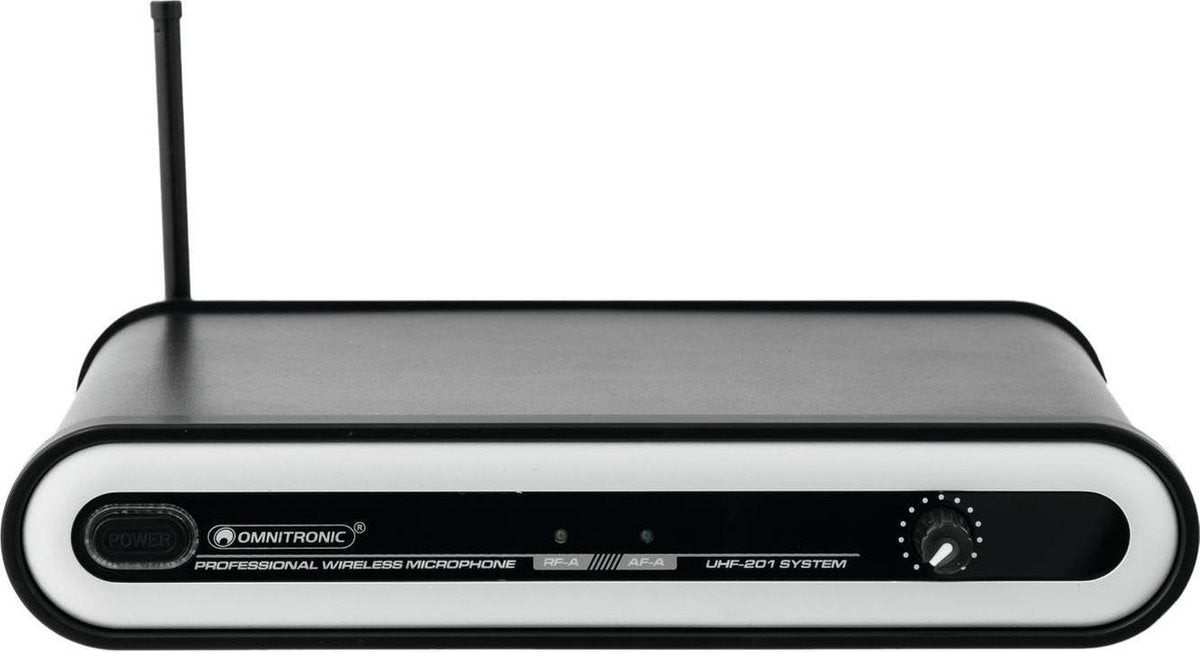

Receiver unit and hand-held microphone with UHF PLL technology
Operation in the low-interference UHF band
Parallel operation of up to 4 sets is possible without any interference
Volume control
XLR and 6.3 mm output
Jack cable included
LEDs for power, carrier and audio signal
Microphone with mute switch and color indication
Matching pocket transmitter can be ordered separately
License-free and approved in the EU
System:
Non-Diversity

Carrier frequency:
864.300 MHz

Coverage:
50 m (with line-of-sight)

RF power output:
10 mW

Modulation method:
F3F

Frequency range:
40-18000 Hz

S/N ratio:
>105 dB

Selectivity:
>80 dB

T.H.D.:
<0.5 % at 1 kHz

Audio outputs:
400 mV, 2.2 kohms (XLR, bal.)


200 mV, 2.2 kohms (6.3 mm jack, unbal.)

Power supply


Receiver:
100-240 V AC, 50/60 Hz via supplied power unit

Power consumption:
10 W

Microphone:
2 x 1.5 V battery, type AA

Battery life:
approx. 10 hours

Dimensions, weight:


Receiver:
155 x 210 x 45 mm (W x D x H), 1 kg

Microphone:
50 x 265 mm (D x L), 280 g
