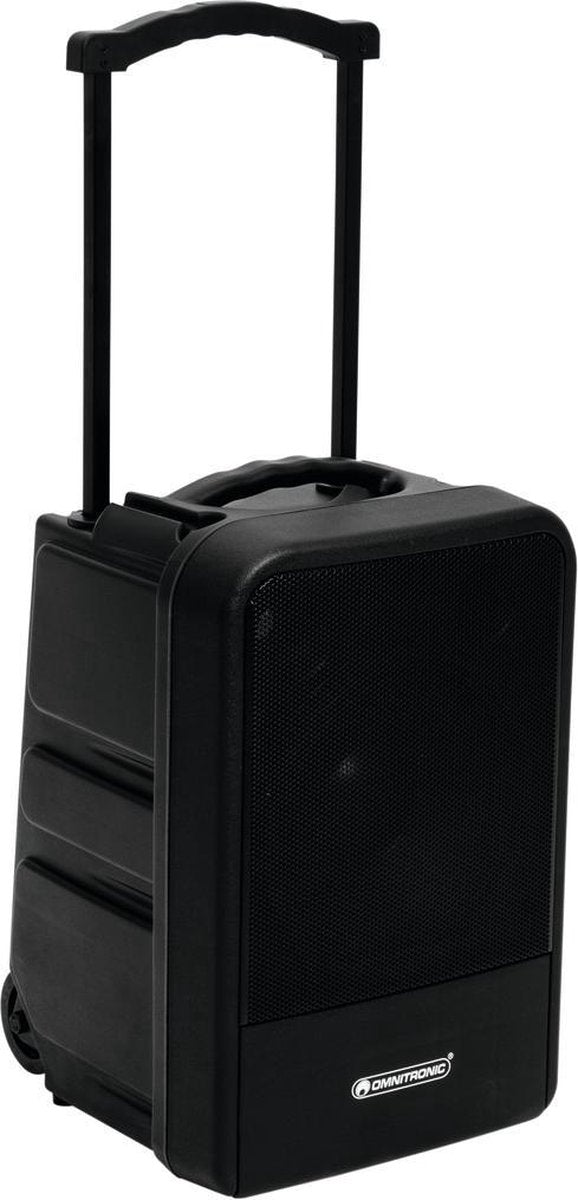

MOM-10BT4 Wireless PA system
A small mobile PA system with a modular structure - that?s the MOM-10BT4. Are you a street musician or want to use the box at conferences? The 2-way system (10?) can be perfectly adapted and expanded to meet your requirements. You need more microphones or a battery after all? Basic, business or fully loaded: Equip the MOM
according to your ideas.

In the basic configuration (mainframe), the MOM-10BT4 has a Bluetooth interface, 2 microphone inputs (with tone control and reverb function) and a line input (XLR or jack). With the mixer unit you regulate the individual components.

The following add-ons are available:

? CD / MP3 player module
? Wireless microphone module
? Battery module
? Audio-Link module

The mobile system offers you additional features. You?ll find Talkover function (Voice Priority), a 5V 2A USB interface that lets you charge your mobile devices, a built-in trolley handle for easy transport, and a speaker stand flange. A protective transport cover with storage space for cables and UHF transmitters is optionally available.

Mobile PA system with battery operation and different equipment options

Wireless PA system with modular structure for maximum flexibility
For mobile applications, e.g. events, sales presentations and lectures
Wireless audio link operation of several MOM-10BT4 systems for larger events
Flexible use: mono operation with several systems or stereo operation with 2 systems linked together
80 watts output power
Power-efficient and battery-saving class D amplifier
High-power 2-way speaker system with 25 cm (10) woofer
Mains operation or battery operation for 6-8 hours of music playing
3 extension slots for retrofitting wireless receivers
1 vario extension slot for retrofitting an audio link module or a further wireless receiver
1 extension slot for retrofitting a CD/MP3 player with SD slot and USB port
Integrated Bluetooth audio streaming for your smartphones and tablets
2 microphone inputs (combination XLR/6.3 mm jack) with adjustable reverb effect
1 line input (XLR und Cinch), switchable stereo/mono
Microphone inputs, line input and Bluetooth module with separate volume controls
Mixer section with common master control and 2-band tone control
Stereo/mono switch for the master signal during audio link operation
Additional XLR output for linking several systems via cable
Switchable microphone priority circuit - ideal for presentations
Built-in fast charger (5 V/2 A) for convenient charging of your mobile USB devices
5-digit battery level indicator
Integrated automatic charging of the batteries
Rechargeable lead gel batteries optionally available (item 13106993)
Ergonomic design
Two wheels and retractable pulling handle for trolley-like mobility
Light-weight black plastic enclosure with metal grille
Flange for speaker stand installation

Power supply:
230 V AC, 50 Hz


or 2 x 12 V/7 Ah rechargeable battery

Power consumption:
100 W

Battery operation:
6-8 hours

Recharging time:
5-6 hours

Amplifier power:
80 W RMS, 160 W max.

Inputs:


Mic:
combination XLR/6.3 mm jack

Line:
XLR and RCA Cinch L/R

Output:


Line:
XLR

LF speaker:
25 cm (10)

HF speaker:
2.5 cm (1)

Frequency range:
50-18000 Hz

Distortion factor:
1 %

Dimensions (L x W x H):
375 x 335 x 535 mm

Weight:
14.7 kg
