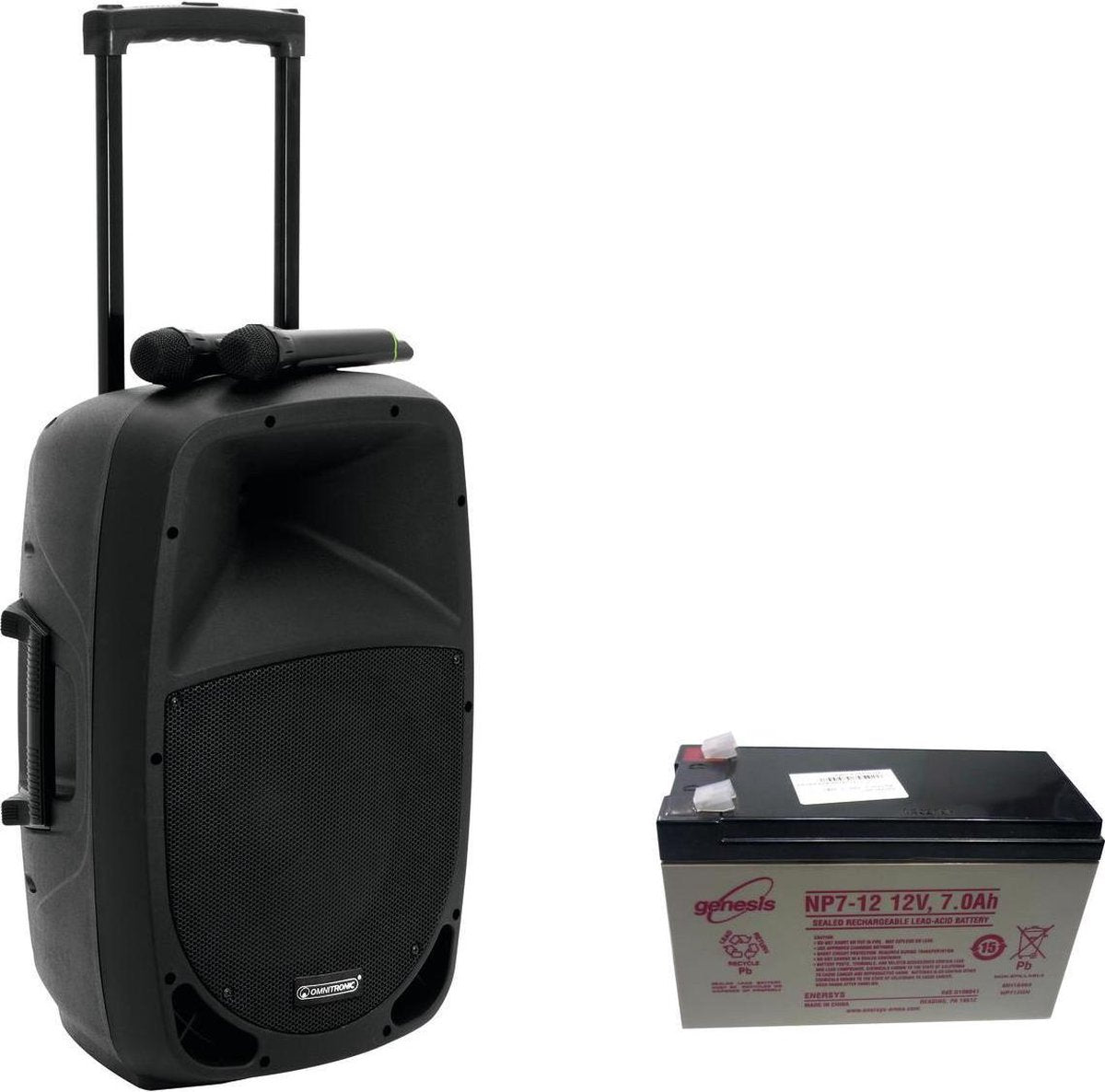

13106955 OMNITRONIC MES-12BT2 Wireless PA System

Portable PA system with 2 UHF receiver units, audio player and Bluetooth

Portable PA system for mobile use
Ideal for mains independent and wireless applications, e.g. at sales events, lectures and gyms
3-channel power mixer (45 W RMS) and 2-way speaker system with a 30 cm woofer (12)
MP3 player with Bluetooth receiver, IR remote control and volume control
SD card slot and USB input
Enjoy music wirelessly from mobile Bluetooth devices such as smartphones, tablets and notebooks
UHF receiver units and 2 matching wireless microphones
Mains operation or battery operation for up to 4-5 hours of music playing
Integrated automatic charging of the battery
Lead acid battery optionally available (13106993)
2 mono microphone channels
1 stereo input channel for line signal sources e.g. CD players and notebooks
Adjustable reverb effect for wireless microphones/microphone channels
Graphic 5-band EQ, master volume control
2 master outputs (mono)
Terminals for external 12V battery operation (e.g. car battery)
Operation of the hand-held microphones via 2 x AA batteries (not included)
Light-weight black plastic enclosure with metal grille, monitor shape and carrying handles
Flange for speaker stand installation
Two wheels and retractable pulling handle for trolley-like mobility
License-free in large parts of the EU

13106993 ACCESSORY Battery 12V/7000mAh

Maintenance-free lead acid battery 7 Ah

Rechargeable
High energy densitiy
Long life
Maintenance-free
Sealed leak proof construction
Suitable for 13106991 OMNITRONIC WAMS-08BT Wireless PA system, 13106955 OMNITRONIC MES-12BT2 Drahtlos-PA-System etc.
One battery needed
Made in Europe

13106955 OMNITRONIC MES-12BT2 Wireless PA System

Power supply: 230 V AC, 50 Hz
or 12 V DC via rechargeable battery or external source
Power consumption: 35 W (1/8 power)
Rec. battery (accessory): 12 V DC, 7 Ah
Battery operation: 4-5 hours
Recharging time: 10-11 hours
Dimensions (L x W x H): 310 x 360 x 600 mm
Weight: 11 kg
Ampilfier:
Nominal power output: 45 W RMS
Maximum power output: 90 W
Inputs:
Mic, mono: 2 x 6.3 mm jack, bal.
Line, stereo: RCA L/R
Output:
Line, mono: 2 x RCA
Speaker system:
Components: 25 cm woofer (10), 2.5 cm driver (1)
Frequency range: 62 Hz - 18 kHz
Maximum SPL: 106 dB
Sensitivity: 90 dB
Reception modules:
Carrier frequency: 830 MHz, 864 MHz
Range: approx. 30 m
Frequency range: 70-16000 Hz
Wireless microphones:
Frequency stability: ±0.005 %
RF power output: 10 mW
Polar pattern: omnidirectional
Frequency range: 70 Hz -16 kHz
Range: approx. 30 m
Battery: 2 x 1.5 V AA
Battery life: 13 hours
Dimensions (D x L): 40 x 260 mm
Weight: 250 g
Bluetooth:
Carrier frequency: 2.4 GHz
Range: approx. 10 m
Audio player:
Playback format: MP3, WMA
Storage media: USB devices and SD(HC) cards up to 32 GB
File system: FAT32

13106993 ACCESSORY Battery 12V/7000mAh

Voltage: 12 V DC
Capacity: 7 Ah
Contact width: 5 mm
Dimensions (L x W x H): 161 x 65 x 100 mm
Weight: 2.5 kg
