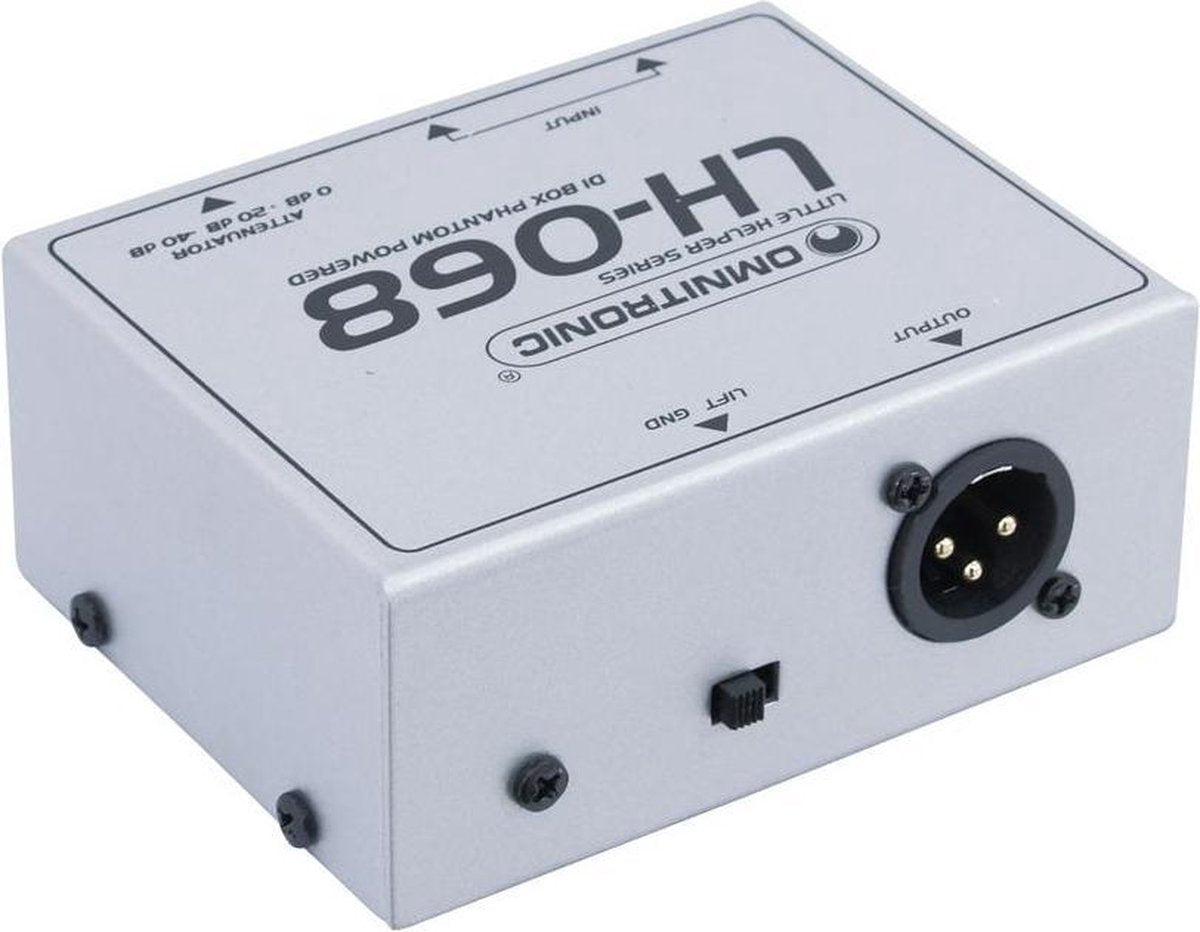

1-channel DI box, phantom powered, active

Phantom-powered DI box
1 high-impedance signal input, 6.3 mm jack
1 low-impedance XLR output
1 instrument feed-through output, 6.3 mm jack
Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
Switchable input attenuation: 0 dB, -20 dB, -40 dB
Ground-lift switch eliminates signal interference and ground loop problems
Requires +48 V phantom power for operation
Rugged gray metal housing
Power supply:
9-48 V DC phantom power

Frequency range:
1-50000 Hz

S/N ratio:
100 dB

Input connector:
6.3 mm jack, unbal.

Input level:
-10 dB to +40 dB

Output connectors:
XLR, bal.


6.3 mm jack, unbal. (parallel out)

Output level:
-10 dB to +2 dB

Dimensions:
95 x 80 x 40 mm

Weight:
0.5 kg
