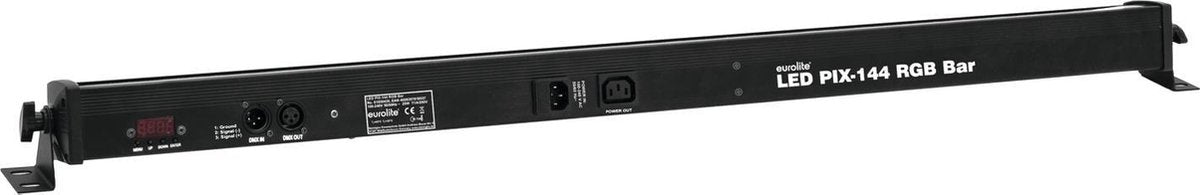

Bar (100 cm) with 144 wide beam SMD LEDs (RGB), 8 segments

Equipped with 144 x SMD-LED in the colors red, green and blue
Flicker-free projection
3, 5, 6, 12, 24 or 48 DMX channels selectable
DMX-controlled operation or stand-alone operation with Master/Slave function
Addressing and setting via Control Board with LED display and four operating buttons
Functions: Static colors, RGB color blend, internal programs, dimmer, strobe settings via DMX, Master/Slave
Subdivided into 8 pixels (illumination units with 18 LED each) which can be controlled individually via DMX
Sound-control via built-in microphone, sensitivity adjustable via control board
Hanging as well as standing installation possible
Locking possibility at the brackets
Switch-mode power supply for operation between 100 and 240 volts
DMX control via every standard DMX controller
Feed-through output allows to power up to 8 devices
Ready for connection via enclosed IEC power cord with safety-plug

Power supply:
100-240 V AC, 50/60 Hz

Power consumption:
25 W

DMX control channels:
3/5/6/12/24/48

DMX512 connection:
3-pin XLR

Sound-control:
via built-in microphone

Flash-rate:
20 Hz

LED type:
RGB-SMD

LED number:
144

Dimensions (L x W x H):
1020 x 65 x 80 mm

Weight:
1.5 kg

Ecodesign regulation:
Yes

Special product:
Not designed for household room illumination

Purpose:
Show effect lighting
