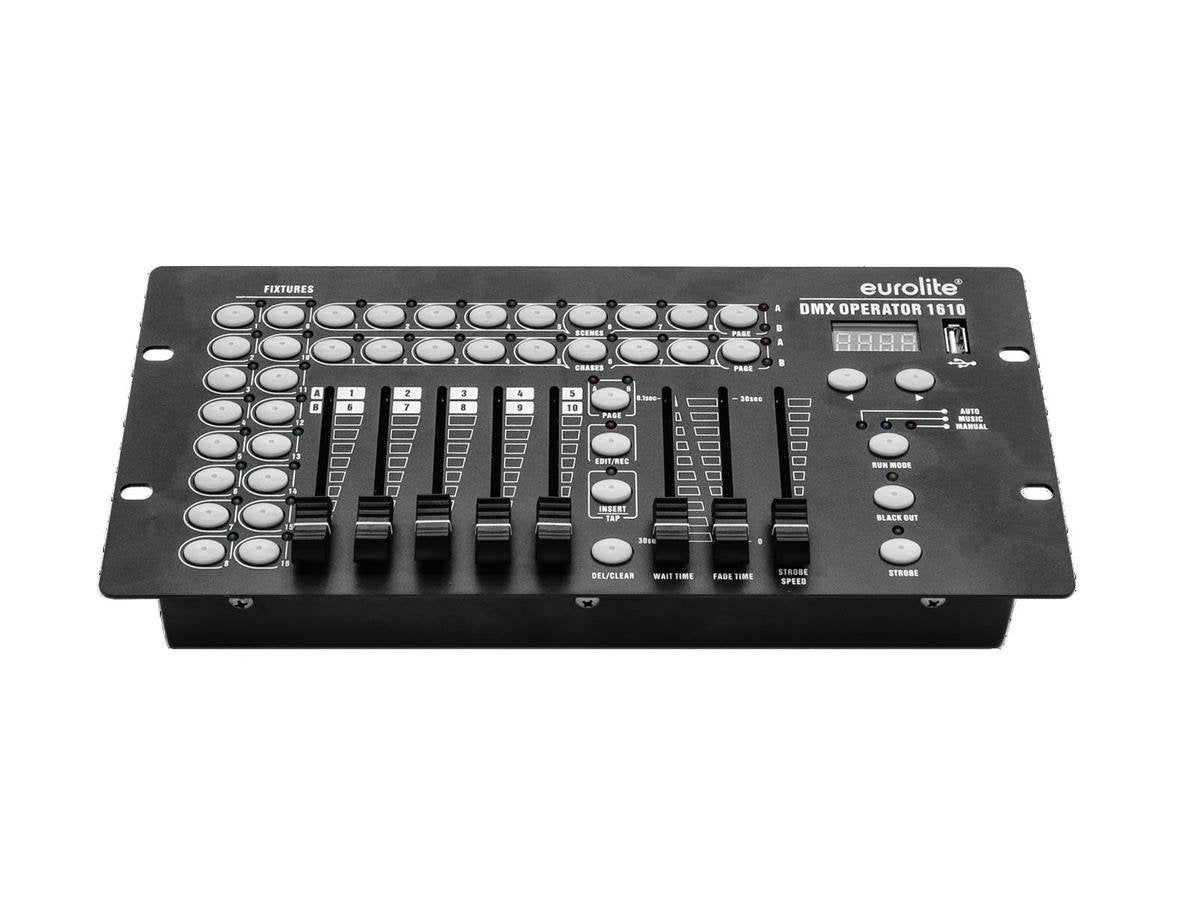

Compact console for 16 lighting effect units up to 10 DMX channels and USB

160 control channels for 16 fixtures with up to 10 channels
USB port for storing program data
16 programmable scenes
16 programmable chases with 200 scenes each can be stored
Manual, time-controlled or sound-controlled chase running mode
Fade between scenes adjustable between 0-30 s
Copy function for scenes and banks
2 DMX fixture levels can be controlled
5 DMX channel faders
Blackout function
Sound control via built-in microphone with adjustable sensitivity
LED display
RDM support
3-pin XLR connector
Firmware update via USB
Desktop console
Power supply:
100-240 V AC, 50/60 Hz


via included power adapter (9 V/800 mA)

Power consumption:
<10 W

Control channels:
160

Storable scenes:
16

Storable chases:
16 with 200 steps each

Sound control:
via built-in microphone

DMX512/RDM output:
3-pin XLR connector

Available storage media:
USB devices (FAT32)

Dimensions (L x W x H):
140 x 310 x 75 mm

Weight:
1.5 kg
