The easy way...

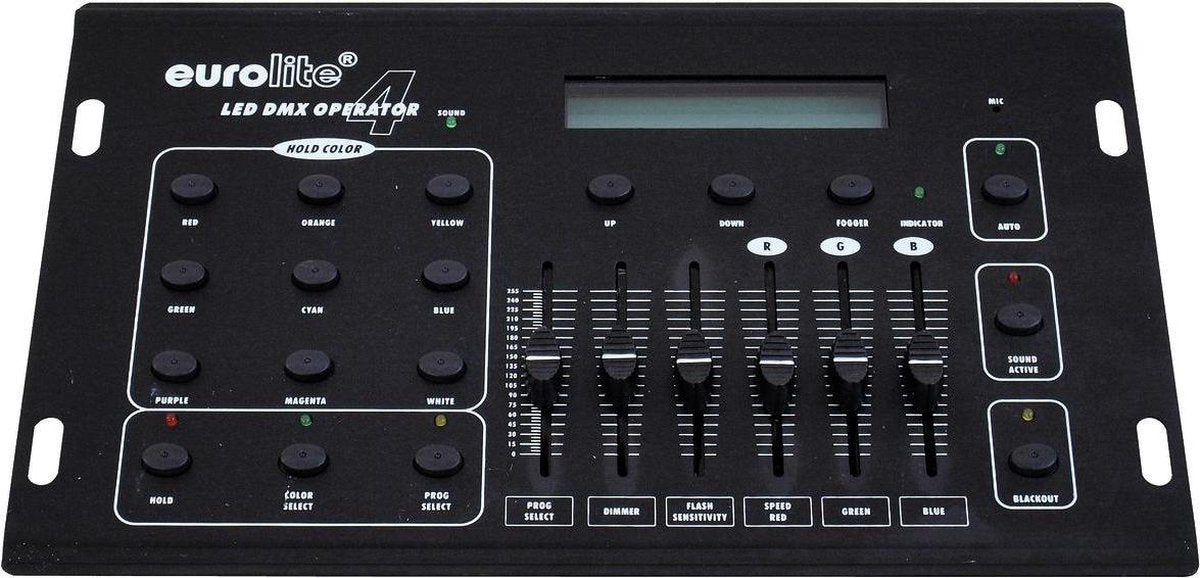

The EUROLITE DMX LED Operator 4 is a DMX controller especially designed for the EUROLITE LED spots and LED effects with 5 DMX channels plus KLS series, LED BAR RGB and a smoke-machine.

This controller features pre-programmed presets and colors, which can easily be displayed by pressing one button. Save your precious time for programming the individual DMX channels in order to display this color or that color.

Simple controller for 4 RGB spots as well as RGB KLS systems

50 control channels only suitable for matching LED effects
4 LED parcans can be controlled individually
Select color mode for choosing single colors
Internal programs
Auto mode for running all programs
Sound-control via built-in microphone or RCA input
Pause function
Blackout function
LCD and control LEDs display current operating mode
Program select fader for selecting the internal programs
Speed fader for adjusting the program speed
Strobe-effect with adjustable speed
Additional fogger button for direct control of a DMX smoke machine (CH-49/50)
Designed for standing operation, optional installation is customer's choice
Power supply via enclosed power unit
Power supply:
230 V AC, 50 Hz,


via 9-12 V DC, 300 mA power unit included in the delivery

Power consumption:
4 W

Number of control channels:
50

Sound-control:
via built-in microphone or RCA input

DMX512 output:
3-pin XLR connector

Dimensions (L x W x H):
320 x 190 x 60 mm

Weight:
1.4 kg
