DMX cable by premium manufacturer Sommer Cable
These premade cables are the perfect choice for the transmission of the 110 ohms AES/EBU DMX512 data format.
Important note: the use of a standard microphone cable is not recommended due to data and information losses (caused by the skin effect). In the lighting domain data losses cause a total jam with signal transmissions or the control of scanner systems.
The very affordable price of this cable should make it easy to switch from a standard microphone cable to a proper AES/EBU cable. Our AES/EBU cable guarantees the error-free data transfer even over longer distances of up to 100 metres. We use the BINARY 234 AES/EBU MKII AES/EBU cable with 100 % shielding and the HICON XLR connectors.

High-quality data cable

AES/EBU- and DMX-conformant, highly flexible
Very good shielding through the use of copper spiral shielding and a fleece vaporized with aluminum
Extremely robust with an especially strong jacket
Only a little more expensive than a standard microphone cable
For networking of scanners, lighting units, digital mixing boards, etc.
For indoor and outdoor installation
For connection of digital audio amplifiers, DAT-recorders, etc.
Made in Germany
Construction:
(2LI2YS 0.34 mm²) (ST)CY

Jacket:
PVC 7.0 mm


FRNC: 5.6 mm

No. of inner conductors:
2 x 0.34 mm² (AWG 22)

Copper strand per conductor:
19 x 0.15 mm

Conductor insulation:
Foam/skin-PE 1.50 mm

Shielding:
copper spiral shielding + aluminum steamed fleece

Shielding factor:
100 %

Temperature range:
-25° C to +70° C

Fire load per m:
0.17 kWh (520-0051 F:0.23 kWh)

Weight per 1 m:
50 g

Packaging:
1.5 m roll

Electrical data


Capac. cond./cond. per 1 m:
<65 pF

Capac. cond./shield. per 1 m:
>115 pF

Cond. resistance per 1 km:
53 ohms

Insulation resist. per 1 km >1 Gohms


Surge impedance:
110 ohms

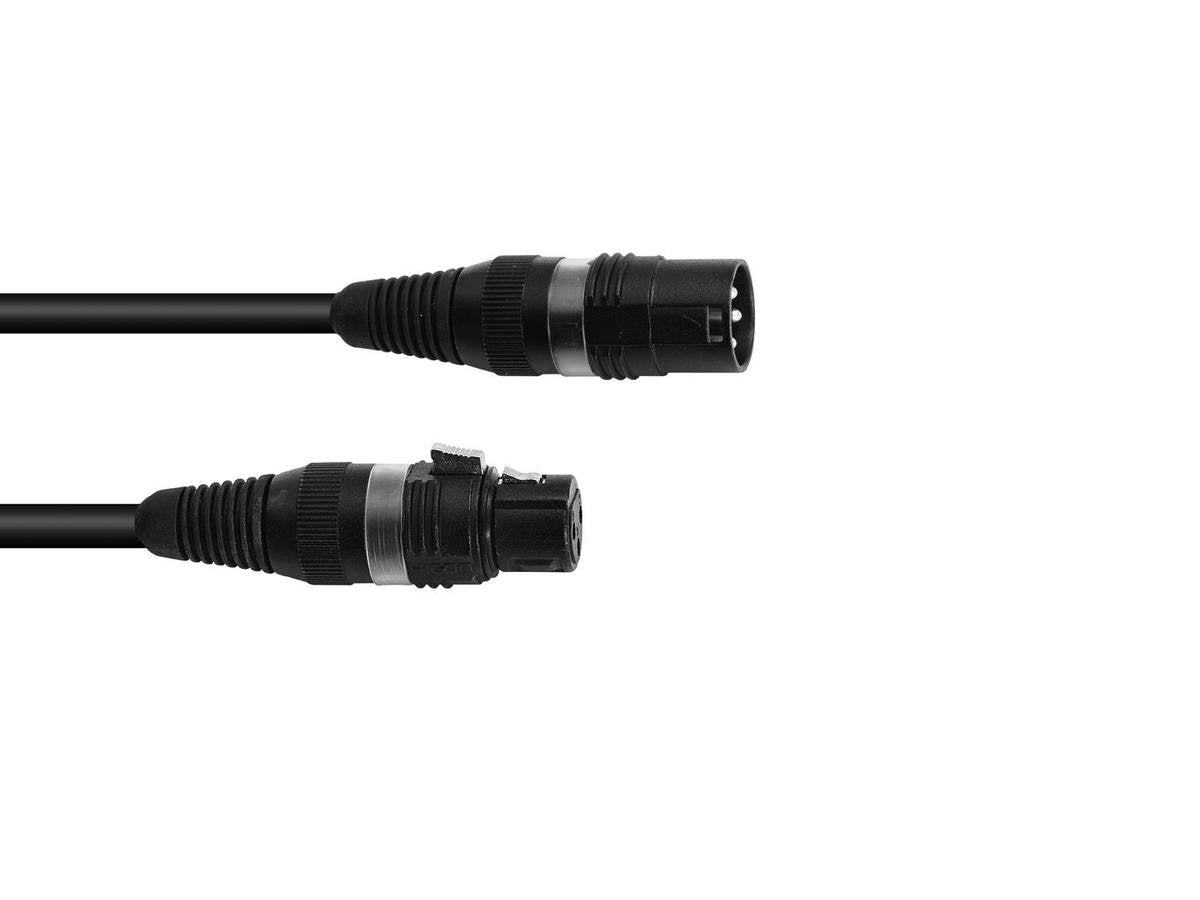

Plug 1:
HICON HI-XCF3N-BLK XLR female, black

Plug 2:
HICON HI-XCM3N-BLK XLR male, black
