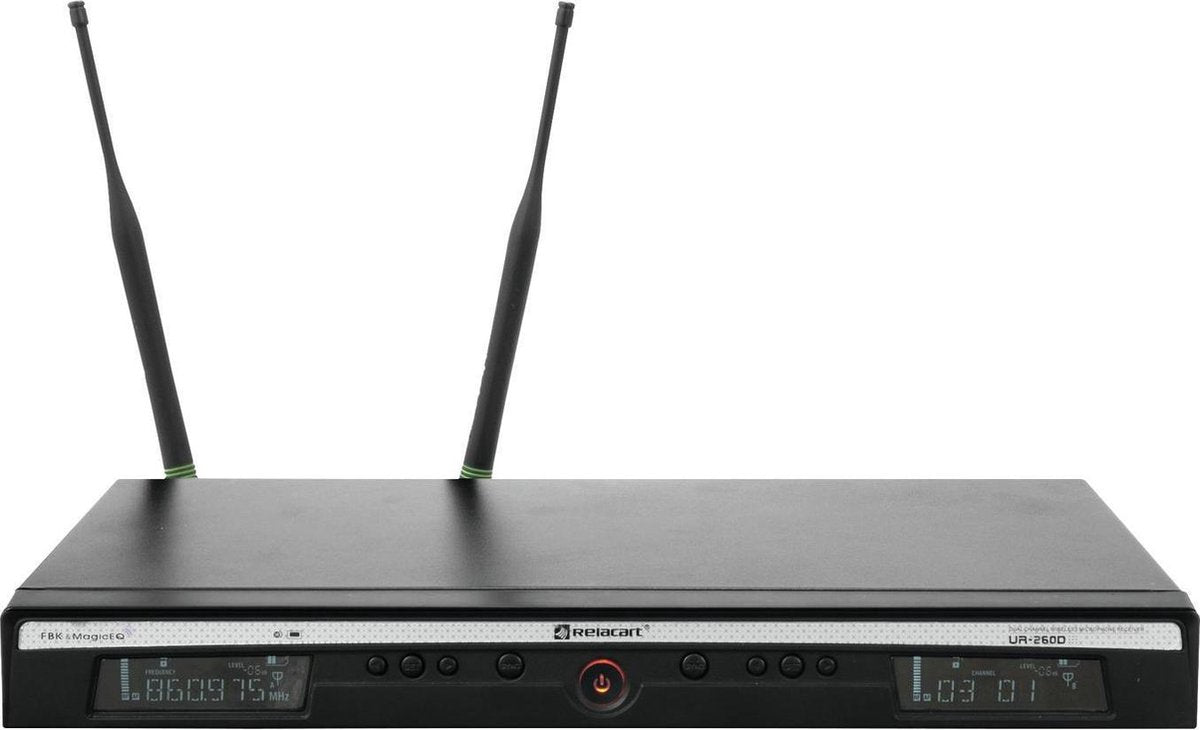

True diversity wireless receiver with DSP for microphone modeling and PC software

2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
DSP programming and management via Ethernet port and intuitively operated PC software
High-quality true diversity reception
2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Parallel operation of up to 9 systems is possible without any interference
Pilot tone technology (PLL) and noise squelch for interference-free operation
Operation range with line of sight approx. 80 meters
Automatic frequency scan (AFS) finds interface-free channels
Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
LCDs for battery status of the transmitters, antenna A/B, RF reception level, AF audio level and frequency
Multiple units can be linked with network cables
Lock function avoids accidental changing of settings
XLR and 6.3 mm jack output
2 detachable BNC antennas allow for use with the R-14D antenna divider
Matching hand-held microphone (UR-260D) optionally available
Delivery includes jack cable and power unit
Durable metal housing
483 mm rack installation possible with supplied mounting brackets
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
System:
True diversity, 2 channels

Carrier frequencies:
UHF 823-832 MHz and 863-865 MHz

Receiving frequencies:
90


10 frequency banks with up to 10 preset frequencies each

Switching bandwidth:
11 MHz

Deviation:
±45 kHz

Frequency stability:
±0.0005 %

T.H.D.:
<0.5 % at 1 kHz

S/N ratio:
>100 dB

Modulation method:
FM

Coverage:
80 m (with line-of-sight)

Frequency range:
45-18000 Hz (±3 dB)

Sensitivity:
5 dBµV (S/N >60 dB at 25 deviation)

Audio output:
2 x XLR, bal.


6.3 mm jack, unbal.

Antenna inputs:
2 x BNC (supply 8 V/150 mA)

Communication:
LAN (TCP/IP)


for DSP programming via Ethernet

Signal processor:
96 kHz, 24 bits

Power supply:
12 V DC, 1 A


via supplied power unit connected to 100-240 V AC, 50/60 Hz

Power consumption:
12 W

Dimensions:
410 x 43 x 225 mm


Rack installation with 1 U


with supplied mounting brackets

Weight:
2 kg
