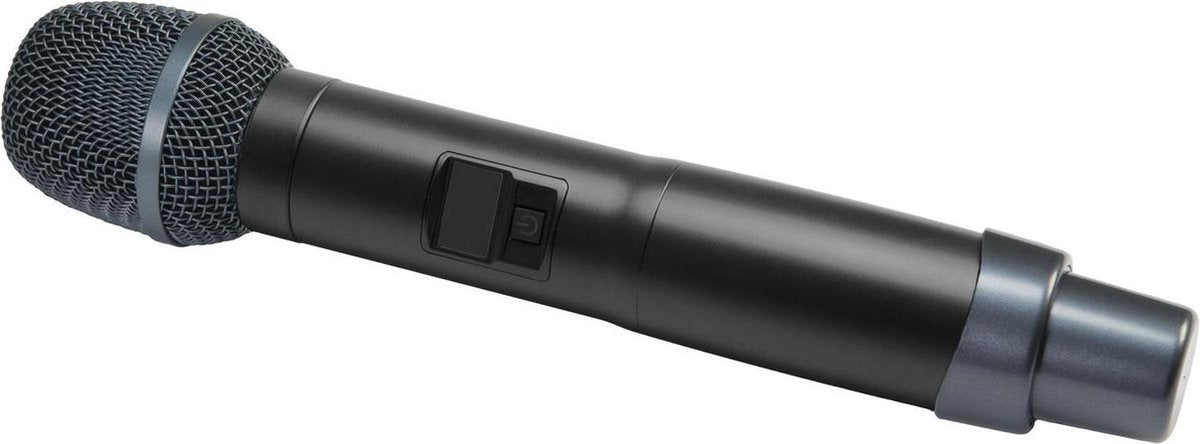

Hand-held microphone with PLL multifrequency transmitter

Dynamic hand-held microphone with UHF pilot tone technology (PLL)
Ergonomic aluminum alloy housing, applicable for touring
Matches receiver UR-222S
2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Infrared interface for easy and error-free synchronization with the receiver via infrared signal
Operation range approx. 80 meters
OLED display for battery status and frequency
Mute function
RF output power Hi/Low adjustable
Directly compatible with Shures SM58 capsule
Operation via 2 x 1.5 V battery (type AA), not included
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
Type:
Dynamic

Directivity pattern:
Cardioid

Carrier frequency:
UHF 823-832 MHz and 863-865 MHz

Transmitting frequencies:
90


10 frequency banks with up to 10 preset frequencies each

Switching bandwidth:
11 MHz

Deviation:
±45 kHz

Modulation:
FM

Coverage:
80 m (with line-of-sight)

Power supply:
2 x 1.5 V battery (type AA)

Current consumption:
approx. 120 mA

Battery life:
approx. 8 hours

Dimensions:
52 x 255 mm

Weight:
235 g
