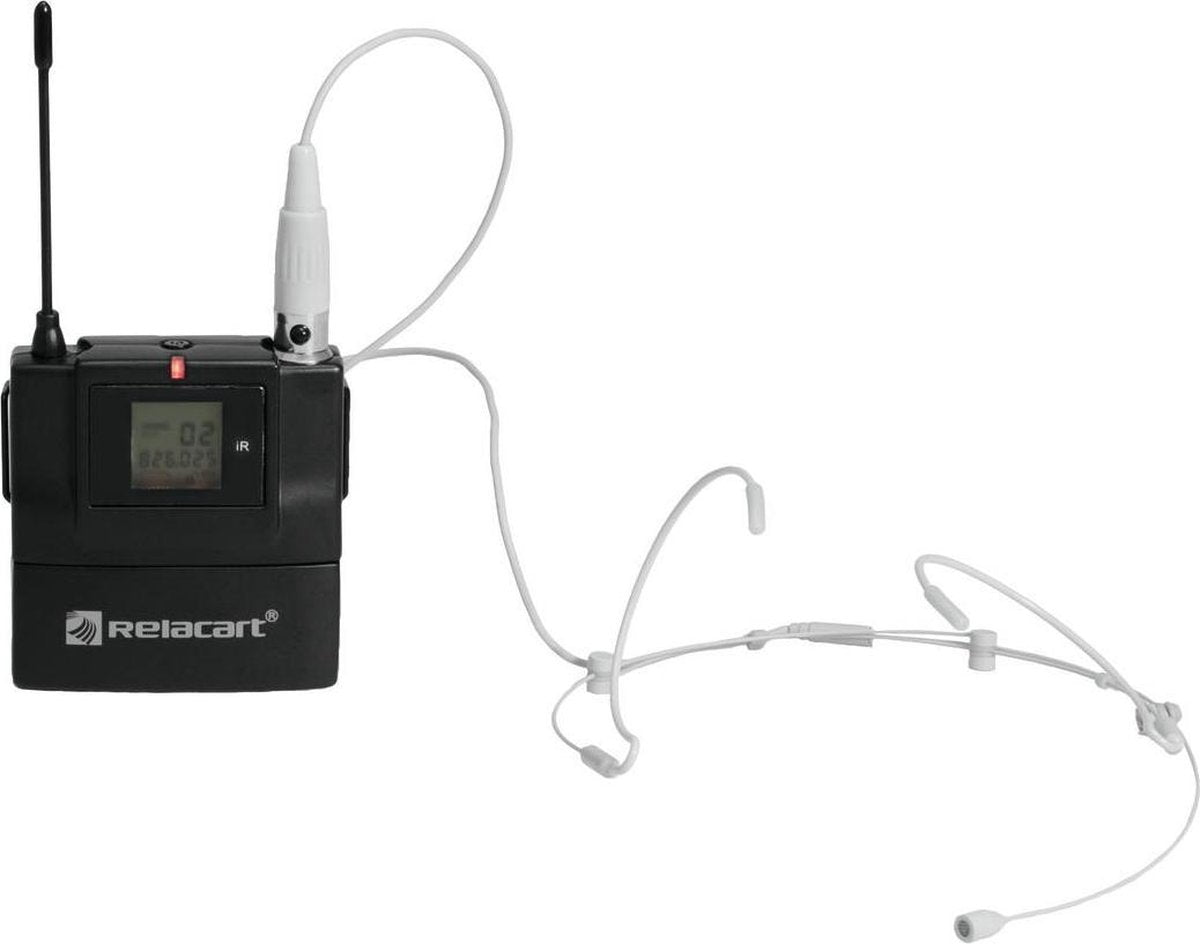

Pocket transmitter with PLL multifrequency transmitter, 731-790 + 823-832 MHz

Pocket transmitter for receiver HR-31S
Durable aluminum alloy housing, applicable for touring
Incl. headset microphone HM-800S
Lavalier microphone LM-C400 optional
Pilot tone technology (PLL) for interference-free operation
2 license-free frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandw
Infrared interface for easy and error-free synchronization with the receiver via infrared signal
Operation range approx. 80 meters
LCD for battery status and frequency
Mute function
Switchable between microphone and instrument input
Operation via 1 x 1.5 V battery (type AA), not included
License-free and approved in the EU (please check on a country-by-country basis)
Carrier frequencies:
UHF 731-790 MHz and 823-832 MHz,adjustable in steps of 25 kHz (292 frequencies)

Frequency groups:
10, with up to 25 preset frequencieseach + 8, with up to 7 preset frequencies each

Switching bandwidth:
68 MHz

Deviation:
±45 kHz

Modulation:
FM

Coverage:
80 m (with line-of-sight)

Connection:
4-pin mini XLR jack (supplies 5 V)

Power supply:
1 x 1.5 V battery (type AA)

Current consumption:
approx. 204 mA

Battery life:
approx. 6 hours

Dimensions:
71 x 63 x 20 mm

Weight:
108 g

Headset microphone:


Type:
Electret

Directivity pattern:
Omnidirectional

Frequency range:
45-18000 Hz

Sensitivity:
-47 dB

Impedance:
2.2 kohms

Power supply:
2-10 V DC

Connection:
cable with 4-pin mini XLR plug

Cable length:
approx. 1 m

Capsule dimensions:
6 x 5 mm
