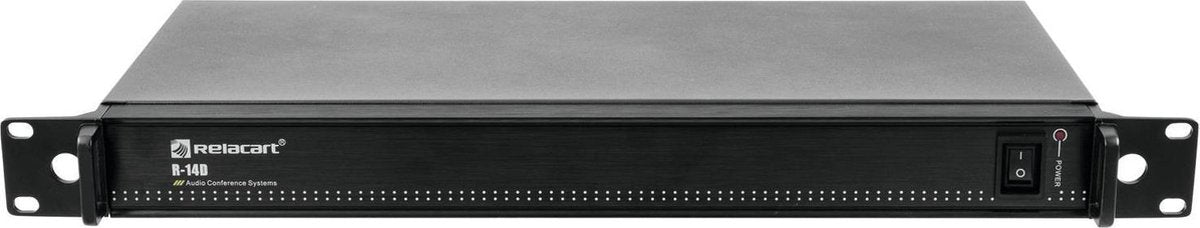

Antenna distributor (470 - 900 MHz)

Active antenna distributor for operating up to four UHF receivers on one pair of multi-antennas
Improves the interference safety and enlarges the range
Replaces the respective antennas and PSUs of the individual receivers
Up to five antenna distributors R-14D can be connected among each other for use of 16 microphones in total
Low-voltage outputs for supplying four UHF receivers, incl. matching connection cables
Use in the entire UHF frequency range (470 - 900 MHz)
All antenna connections via BNC jacks
Rack installation with 1 unit
Power supply:
100-240 V AC, 50/60 Hz

Power consumption:
60 W

Frequency range:
470-900 MHz

Impedance:
50 ohms

Antenna connectors:
2 x BNC

Receiver outputs:
8 x BNC

Low-voltage outputs:
4 x 12 V DC

Dimensions distributor:
482 x 242 x 45 mm


Rack installation with 1 U

Weight:
2.6 kg
