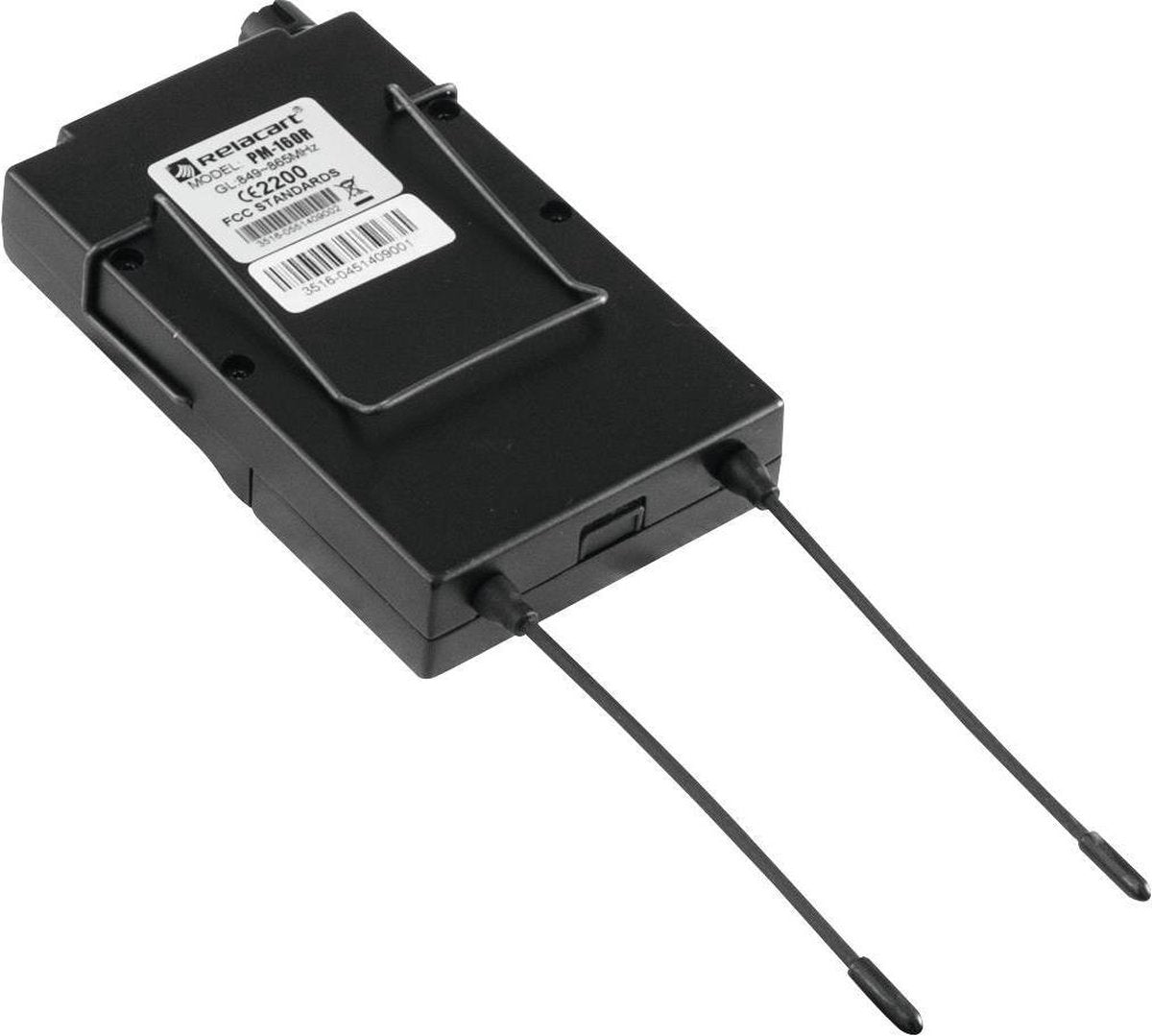

In-ear stereo wireless receiver with diversity technology

Stereo pocket receiver with 32 preset channels for in-ear monitoring
Incl. earphones
Extension for the matching in-ear monitoring system PM-160
Sturdy all-metal housing with soft-touch controls, applicable for touring
Diversity technology with 2 antennas for high reception quality
2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
Pilot tone technology (PLL) and noise squelch for interference-free reception
OLED display for battery capacity, receiving frequency/channel
LEDs for antenna A/B, AF signal and stereo operation
Stereo or mono/mix mode
Balance L/R adjustable
Lock function for prevents undesired changes to settings
Operation via 2 x 1.5 V batteries (type AA), not included
License-free and approved in the EU (please check Duplex Gap on a country-by-country basis)
System:
Diversity, 1 channel

Carrier frequency:
UHF 823-832 MHz and 863-865 MHz,


adjustable in steps of 25 kHz

Frequency groups:
32, preset

Switching bandwidth:
11 MHz

Antennas:
Integrated

Deviation:
±68 kHz

Frequency stability:
±0.0005 %

T.H.D:
<0.7 % at 1 kHz

S/N ratio:
>105 dB

Modulation method:
FM, stereo

Coverage:
80 m (with line-of-sight)

Frequency range:
45-18000 Hz (±1 dB)

Sensitivity:
6 dBµV (S/N >60 dB at 25 deviation)

Audio output:
3.5 mm stereo jack

Power supply:
2 x 1.5 V battery (type AA)

Current consumption:
approx. 185 mA

Battery life:
approx. 7 hours, depending on the volume

Dimensions (W x D x H):
118 x 66 x 22 mm

Weight:
190 g
