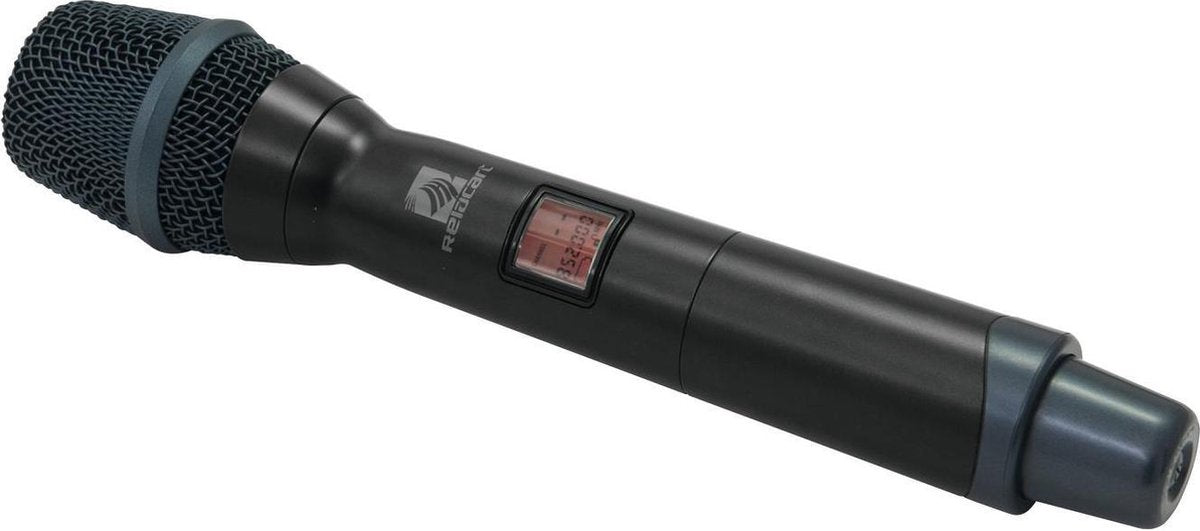

Hand-held microphone with PLL multifrequency transmitter

Dynamic hand-held microphone with UHF pilot tone technology (PLL)
Ergonomic aluminum alloy housing, applicable for touring
Matches receiver HR-31S
2 different frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
Infrared interface for easy and error-free synchronization with the receiver via infrared signal
Operation range approx. 80 meters
OLED display for battery status, frequency and channel
Mute function
RF output power Hi/Low adjustable
Directly compatible with Shures SM58 capsule
Long battery life for up to 15 hours continuous operation
Operation via 2 x 1.5 V battery (type AA), not included
License-free and approved in large parts of the EU (please check on a country-by-country basis)
Type:
Dynamic

Directivity pattern:
Cardioid

Carrier frequency:
UHF 731-790 MHz and 823-832 MHz

Transmitting frequencies:
292


10 frequency banks with up to 25 preset frequencies each +


8 frequency banks with up to 7 preset frequencies each

Switching bandwidth:
68 MHz

Deviation:
±45 kHz

Modulation:
FM

Coverage:
80 m (with line-of-sight)

Power supply:
2 x 1.5 V battery (type AA)

Current consumption:
approx. 90 mA

Battery life:
approx. 15 hours

Dimensions:
51 x 256 mm

Weight:
215 g
