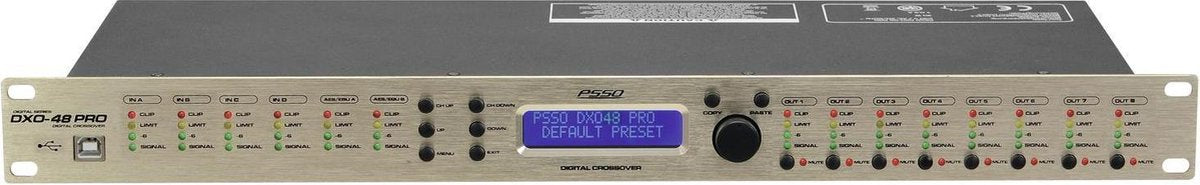

Digital speaker management system with real-time network communication, 4 inputs and 8 outputs

Digital network speaker management system with 64-bit processing
Premium components ensure excellent sound-features
Flexible routing configurations for all standard mono and stereo output operating modes
4 analog inputs and 1digital AES/EBU interface (XLR)
8 analog outputs (XLR)
Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
10-band parametric EQ per input and output
Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass
Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
The intelligent software for PC and Mac allows convenient control with a computer
Full configuration and real-time network communication via the built-in Ethernet interface
Up to 80 user presets storable in the device via software
Control of all functions also possible via the controls at the front panel
Alphanumeric LCD screen with 2 lines of 16 characters each
Input sensitivity digitally adjustable
Inputs and outputs with 4-digit VU meter
Mute switch with LED indicator per output
Up to 2000 ms signal delay adjustable for the inputs and outputs
Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
Switchable phase (180°)
Lock function for protecting the program settings
Rack installation, 1 U
Windows XP, Vista, 7, 8 and Mac OS X 10.5.8 and better
Control your speaker systems more flexible than ever with the DXO Control app
DXO Control for iPad supports all functions of the PC software and is available for free from the app store
Made in Germany
Power supply:
100-240 V AC, 50/60 Hz

Power consumption:
10 W

Inputs:
4 x XLR, balanced

Maximum input level:
+22 dBu

Input impedance:
10 kohms

Dynamic range:
118 dBA

Digital input:
1 x AES/EBU (XLR)

Input impedance:
110 ohms

Outputs:
8 x XLR, balanced

Output impedance:
50 ohms (electronically balanced)

Output gain range:
-50 to +12 dB

Maximum output level:
+12 dBu

Dynamic range:
118 dBA

Frequency range:
10-40000 Hz

Sampling frequency:
65 kHz

Distortion:
0.005 %

Filter types:
Bessel, Butterworth or Linkwitz-Riley

Slopes:
6, 12, 18 or 24 dB/octave

Crossover frequency:
20-20000 Hz

Delay:
0 to 2000 ms (inputs/outputs)

Communication:
LAN (TCP/IP), USB type B

Dimensions (W x D x H):
482 x 44 x 223 mm

Weight:
2.7 kg
