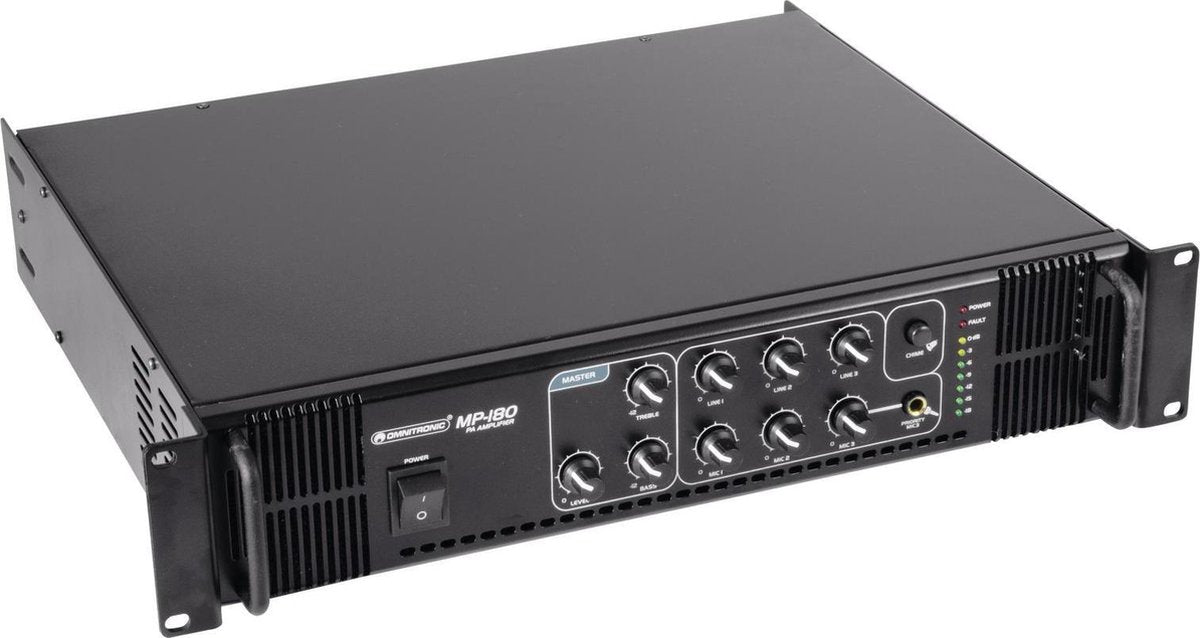

PA mono mixing amplifier, 180 watts

PA outputs for 70 V or 100 V PA speakers or for low-impedance speakers (4-16 ohms)
3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
Microphone input 3 with adjustable priority circuit
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Chime, switchable
Treble and bass control for the output signal
7-fold LED level display
Master control for the output signal
Fan-cooled
Protection circuits with LED indication: over current, short circuit, turn-on delay
Rack installation
Power supply:
230 V AC, 50 Hz

Power consumption:
360 W

Output power:
180 W RMS

Output type:
70 V, 100 V or 4-16 ohms

Mic input:
5 mV, 600 ohms

Line input:
300 mV, 10 kohms

Output connectors:
Screw connectors

Frequency range:
80 Hz - 14 kHz

S/N ratio:
85 dB (line), 75 dB (mic)

Dimensions:
483 x 400 x 88 mm

Weight:
10 kg
