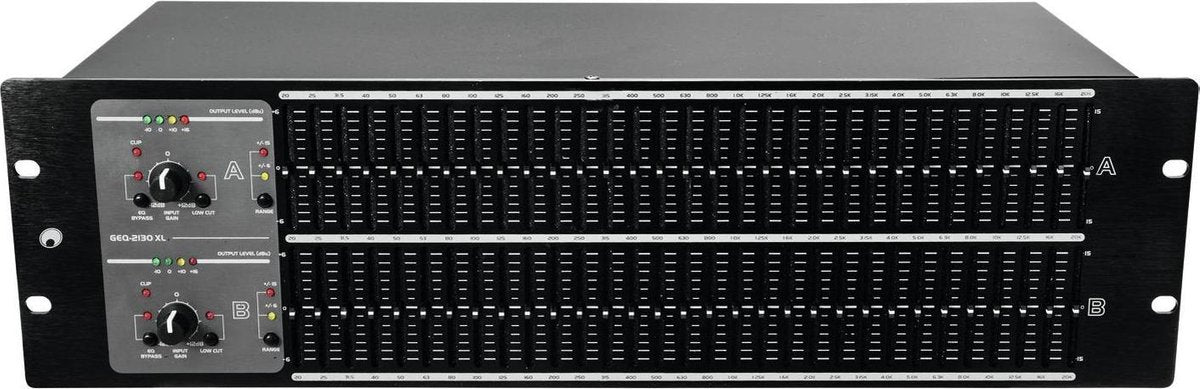

2 x 31-band equalizer with XL faders

2-channel version, 2 x 31 frequency controls with 1/3 octave steps
XL (50 mm) sliding frequency controls with center click
EQ range switchable ±6 dB to ±15 dB
Bessel low-cut filter (18 dB/octave 40 Hz)
Separate input gain control per channel
Bypass switch allows instant comparison of the original sound with the equalized sound
4-fold LED level meter with clip indicator
Inputs and outputs via 6.3 mm jack sockets, XLR sockets and screw terminals
Rack installation, 3 U
Power supply:
230 V AC, 50 Hz

Power consumption:
20 W

Connectors:
XLR, jack, screw terminals

Input impedance:
40/20 kohms (bal./unbal.)

Max. input level:
+21 dBu (bal./unbal.)

Output impedance:
120/60 kohms (bal./unbal.)

Max. output level:
+21 dBu (bal./unbal.)/2 kohms, +18 dBu (bal./unbal.)/600 ohms

S/N ratio:
>95 dB

Crosstalk:
<-80 dB

Distortion:
<0.01 %

Frequency range:
20-20000 Hz, ±0.5 dB

Input gain:
±12 dB

Control range:
±6 dBu or ±15 dBu

Frequencies:
2 x 20/25/31.5/40/50/63/80/100/125/160/200/250/315/400/500/ 630/800 Hz, 1/1.25/1.6/2/2.5/3.15/4/5/6.3/8/10/12.5/16/20 kHz

Low cut:
40 Hz

Dimensions (W x D x H):
483 x 223 x 136 mm

Weight:
4.6 kg
