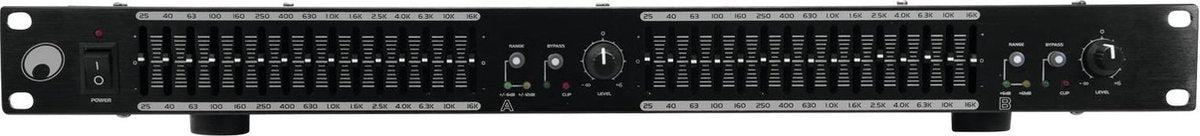

2 x 15-band equalizer

2-channel version, 2 x 15 frequency controls with 2/3 octave steps
Short sliding frequency controls with center click
EQ gain switchable ±6 dB to ±12 dB
Separate level control per channel
Bypass switch allows instant comparison of the original sound with the equalized sound
Clip indicator
Inputs and outputs via 6.3 mm jack sockets and XLR sockets
Groundlift switch
Rack installation, 1 U
Power supply:
230 V AC, 50 Hz

Power consumption:
20 W

Connectors:
XLR, 6.3 mm jack

Input impedance:
20 kohms/15 kohms (bal./unbal.)

Max. input level:
+24 dBu/+18 dBu (bal./unbal.)

Output impedance:
120/60 kohms (bal./unbal.)

Max. output level:
+24 dBu/+18 dBu (bal./unbal.)/2 kohms,


+18 dBu/+12 dBu (bal./unbal.)/600 kohms

S/N ratio:
96 dB

Distortion:
<0.05 %

Frequency range:
20-20000 Hz, ±0.5 dB

Output level:
- ~ to +6 dB

Control range:
±6 dB or ±12 dB

Frequencies:
2 x 25/40/63/100/160/250/400/630 Hz, 1/1.6/2.5/4/6.3/10/16 kHz

Dimensions (W x D x H):
483 x 220 x 54 mm

Weight:
2.3 kg
