USB and Artnet interface to control two DMX universes with Madrix

Is especially suited for solid-state projects as it can be mounted on 35-mm DIN rails or walls via the provided wall-mount brackets
Eliminates the need for extra XLR connectors and converters: directly connect DMX512 to the device over two 3-pin screw terminals
Provides flexible power options: over 5 V USB or 5 V to 24 V via screw terminal
Drives up to 2 DMX universes over 2 ports (1024 DMX channels)
Each port can either be configured as output or input
Receives Art-Net over Ethernet network to convert to DMX512 for your LED fixtures
Can also be used as MADRIX USB interface
Works great with the MADRIX software with quick and easy installation (sold separately)
MADRIX Sync Mode: Only MADRIX software and hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions
Complies with the official Art-Net specifications and can be used as regular Art-Net unit with other consoles, controllers, or software solutions
Automatic HTP merging for two Art-Net sources
Built-in web tool for on-device configuration
6 status LEDs, which can be turned off
Non-conductive enclosure with IP20 and UL94 V-O flammability rating
Fanless, low-energy design
Ready within seconds after startup
Recommended for any small or large installation
Multiple devices can be used together without problems
The firmware can be updated for future features
MADRIX 3.X minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.1 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
MADRIX 3.X supported operating systems: Microsoft Windows Vista 7 8 8.1 10 (compatible with 32 bit and 64 bit)
Installation instructions and MADRIX software available in English, German, Spanish, French, and Simplified Chinese
Software user manual available in English
Quick start guide / technical manual available in English and German
Made in Germany

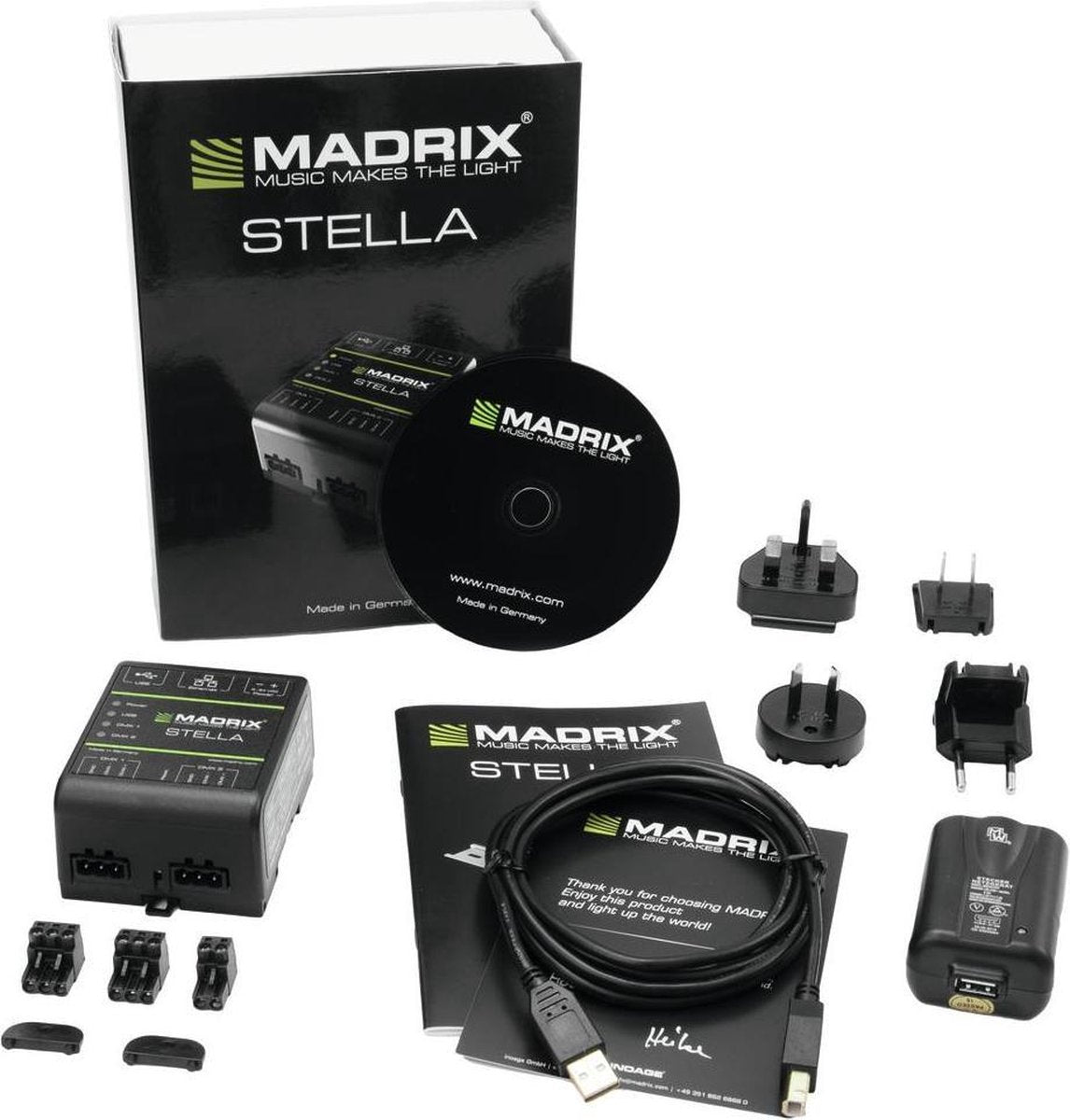

Package Contents: 1x MADRIX STELLA, 1x Set of screw terminals (2x 3-pin and 1x 2-pin), 1x USB power supply, 1x USB 2.0 cable (certified), 1x World power plug adapters kit, 2x Wall-mount brackets, 1x Quick start guide / technical manual, 1x CD-ROM incl. MADRIX software and USB drivers (software license not included)
User manuals also available at help.madrix.com
Free software demo version and more information available at www.madrix.com
Made in Germany
Power supply:
DC 5 V - 24 V, connection via 2-pin screw terminal or via 5 V USB (USB power supply included)

Power consumption:
<1.5 W during normal operation (300 mA max.)

DMX512:
2 x 512 DMX channels, input and/or output

DMX512 ports:
2 x ports (via 2 x 3-pin screw terminals)

Ethernet (Art-Net):
RJ45, 10/100 MBit/s (compatible with 1 GBit/s)

USB port:
USB 2.0, type B plug

Case:
Non-conductive, IP20, UL94 V-0 flammability rating, designed for 35 mm DIN-rails or wall mounting

Dimensions:
92 mm x 70 mm x 45 mm (length x width x height)

Weight:
111 g 130 g incl. screw terminals and wall mounts

Temperature range:
-10 °C to 70 °C (Operating) -20 °C to 85 °C (Storage)

Relative humidity:
5 % to 80 %, non-condensing (Operating / Storage)
