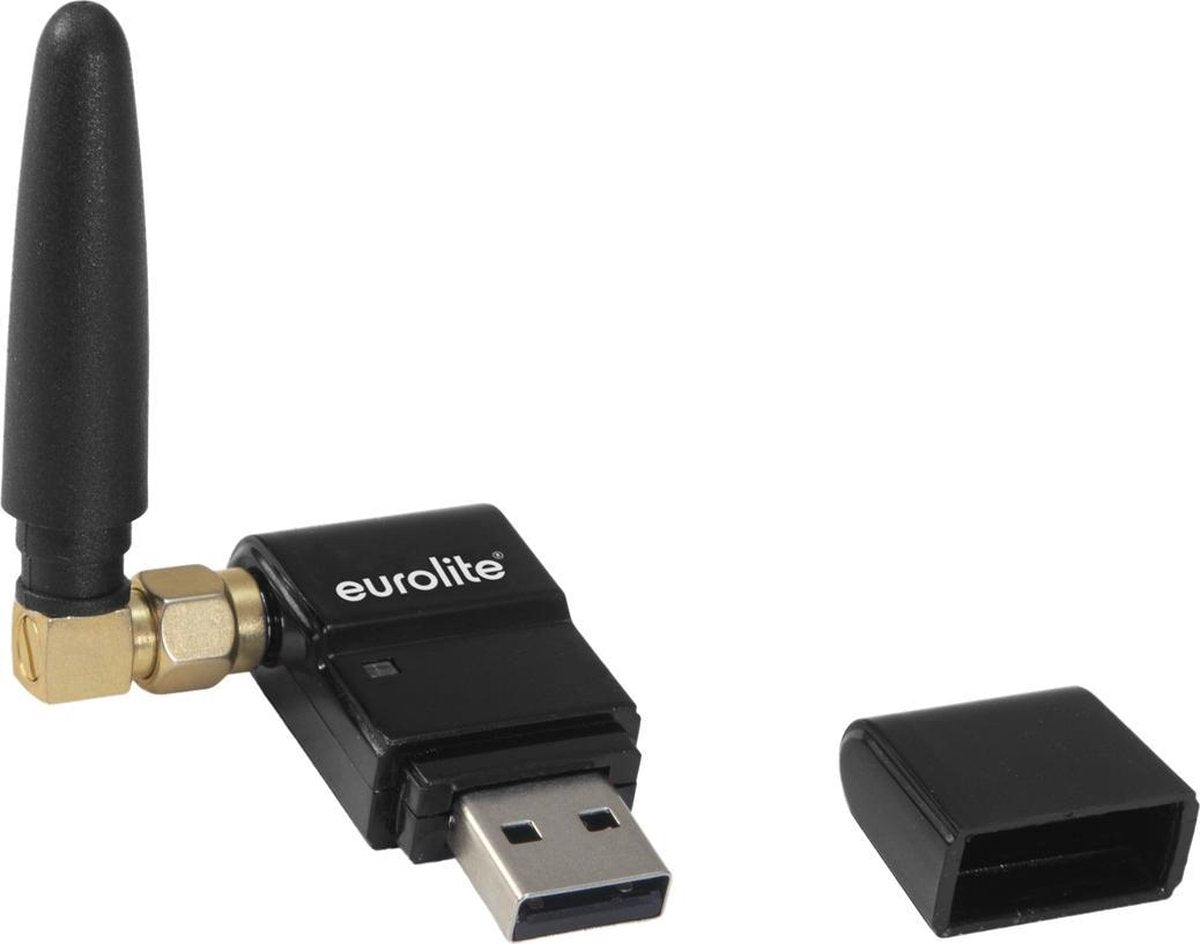

Wireless miniature DMX transceiver 2.4 GHz, phantom powered

Compact miniature DMX transmitter/receiver for the wireless transmission of up to 512 DMX channels
User-friendly USB plug with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Operating range up to 400 m (with line-of-sight)
Simultaneous operation of up to 6 transmitters, thus control of 6 DMX universes (3072 DMX channels) possible
Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
LED indication for functions
Transceiver to be used as transmitter or receiver
Requires 5 V phantom power for operation
2.4 GHz ISM band - license-free worldwide

Power supply:
5 V DC phantom power

Carrier frequency:
2.4 GHz ISM band, 78 channels

Modulation:
GFSK

Coverage:
400 m (line-of-sight)

Parallel operation:
max. 6 transmitters

QuickDMX connection:
USB, type A

DMX channels:
1 universe (512 channels)

Dimensions with antenna (L x W x H):
86 x 40 x 11 mm

Weight:
15 g

Number of DMX channels:
512

IP classification:
IP20

Color:
Black
