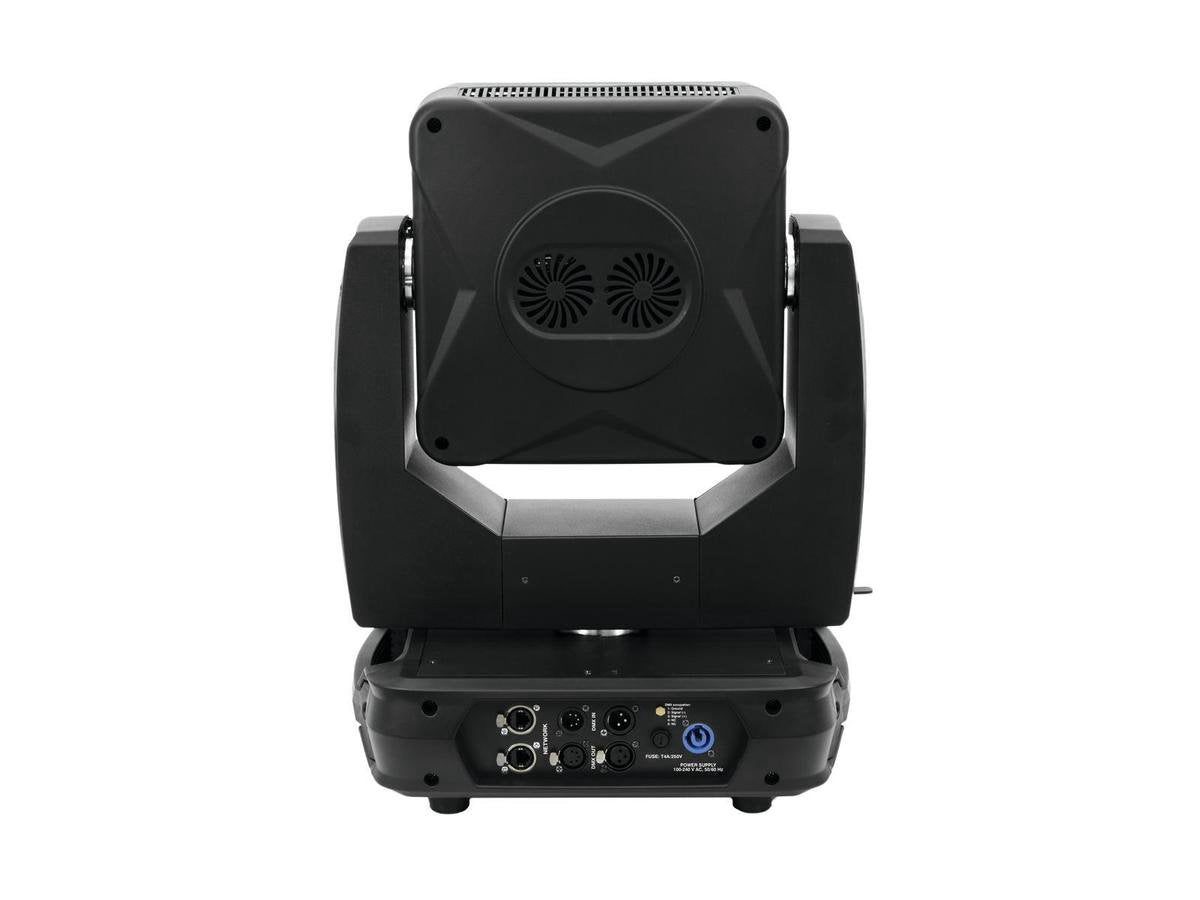

5x5 Matrix Panel, bright 12 W RGBW LEDs, large zoom

OB Moving Panel with 5 x 5 matrix with zoom, endless PAN/TILT and Art-Net
Equipped with 25 x 12 W COB LED in the colors red, green, blue and white
Quick and easy control via Art-Net
Infinity function for unlimited PAN and TILT movement
Each LED can be controlled individually
Flicker-free projection
Motorized zoom with 7.5-60° beam angle
13, 24, 88 or 113 DMX channels selectable
Functions: stepless RGBW color mixture, automatic color change, preset colors and color temperatures, figure and letter patterns, strobe effect with variable speed, random strobe effect, dimmer
Different dimmer curves and dimmer speed (step response) adjustable
Automatic position correction
Exact positioning via 16 bit PAN/TILT movement resolution
PAN angle switchable between 540° and 630°
DMX-controlled operation or for use via appropriate lighting control software supporting Art-Net
Control board with LCD for adjusting the DMX-starting address, PAN/TILT reverse, reset
Ethernet connectors
Switch-mode power supply for operation between 100 and 240 volts
Power connection via P-Con jack and included power cable
DMX control via every standard DMX controller
Power supply:
100-240 V AC, 50/60 Hz

Power consumption:
450 W

Protocol:
Art-Net 3

Signal port:
2 x RJ45 (Ethernet)

DMX channels:
13/24/88/113

DMX connection:
5-pin and 3-pin XLR

Flash-rate:
20 Hz

LED number:
25

LED type:
12-W-COB, RGBW

Maximum PAN-movement:
unlimited

Maximum TILT-movement:
unlimited

Beam angle:
7.5-60°

Dimensions (W x D x H):
415 x 310 x 535 mm

Weight:
16.5 kg

Ecodesign regulation:
Yes

Special product:
Not designed for household room illumination

Purpose:
Show effect lighting
