Controller with color & motion effects (28 fixtures, 18 control channels each)

DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
For 28 fixtures with 18 control channels each
USB port for storing program data
Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
32 programmable chases with 100 scenes each can be stored
Manual, time-controlled or sound-controlled chase running mode
32 programmable scenes
2 DMX fixture levels can be controlled, each with up to 18 channels
16 DMX channel faders
2 jog wheels for pan/tilt
Blackout function
Sound control via built-in microphone
Backlit LCD (2 x 16 characters)
RDM support (DMX address setup and identify)
3-pin XLR connector
Firmware update via USB
Desktop console
Rack installation with 3 units
Power supply:
100-240 V AC, 50/60 Hz


via power unit included in the delivery

Power consumption:
2.7 W

Number of control channels:
512

Storable scenes:
32

Storable chases:
32 with 600 steps max.

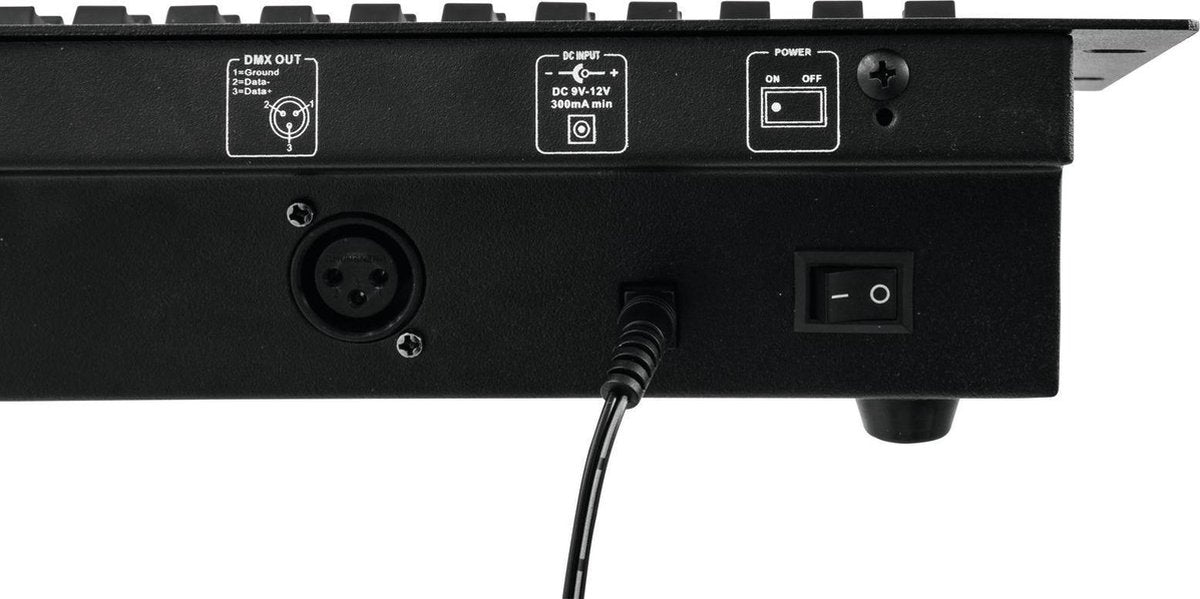

DMX512/RDM output:
3-pin XLR connector

Available storage media:
USB devices (FAT32)

Dimensions (L x W x H):
483 x 130 x 82 mm


Rack installation with 3 U

Weight:
2.2 kg
