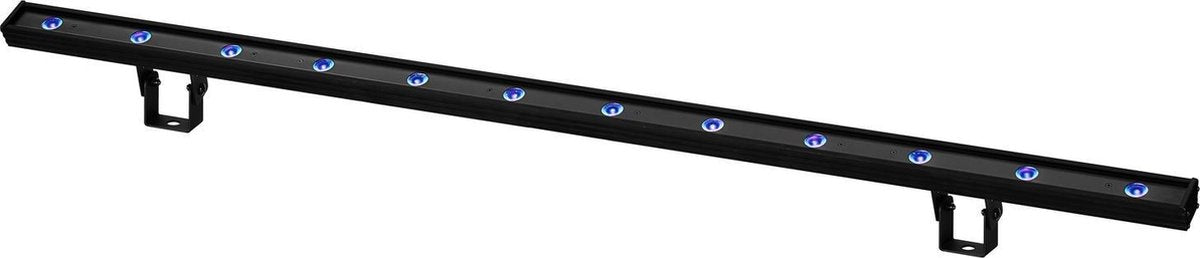

The Antari DarkFX Strip 1020 is an efficient high-output and low-power consumption UV LED bar that delivers a peak wavelength of 365 nm and radiant flux output of 9000 mW at full intensity with minimum visible light. This ensures all UV-reactive materials reflect perfectly with stunningly bright and vivid colors. Equipped with 12 x 1.9 W high-power UV LEDs, it features a 40° beam angle, flicker-free operation and special optics to prevent wear degradation from high UV exposure. This IP20-rated LED bar has been designed for indoor use only and comes with an aluminium housing with an adjustable bracket for versatile mounting options. The Antari DarkFX Drive 4 or Drive 4 MKII fixture driver (sold separately) is required for power and DMX control.

PRO UV bar with 12 x 1.9 W UV LED, deep UV wavelength (365 nM)

High-efficiency UV LED
Peak wavelength at 365 nm
Minimum visible light
High output at full intensity
Special optics will not degrade due to high UV exposure
Power supply and DMX control via optional Antari DarkFX Drive 4 MK2 fixture driver
Power/data bare wire
Control: with LED controller (not included)
Effect: UV
Power supply:
48 V DC

LED type:
1.9 W UV LED

LED number:
12

Color range:
365 nm

Ecodesign regulation:
Yes

Special product:
Not designed for household room illumination

Purpose:
Show effect lighting

Power consumption:
24 W

IP classification:
IP20

Cooling fan:
No, cooling by convection

Beam angle:
40 - 40°

Beam angle:
40° Mono colour

Case color:
Black

Width:
3 cm

Depth:
119,32 cm

Height:
10 cm

Weight:
1,96 kg
