The

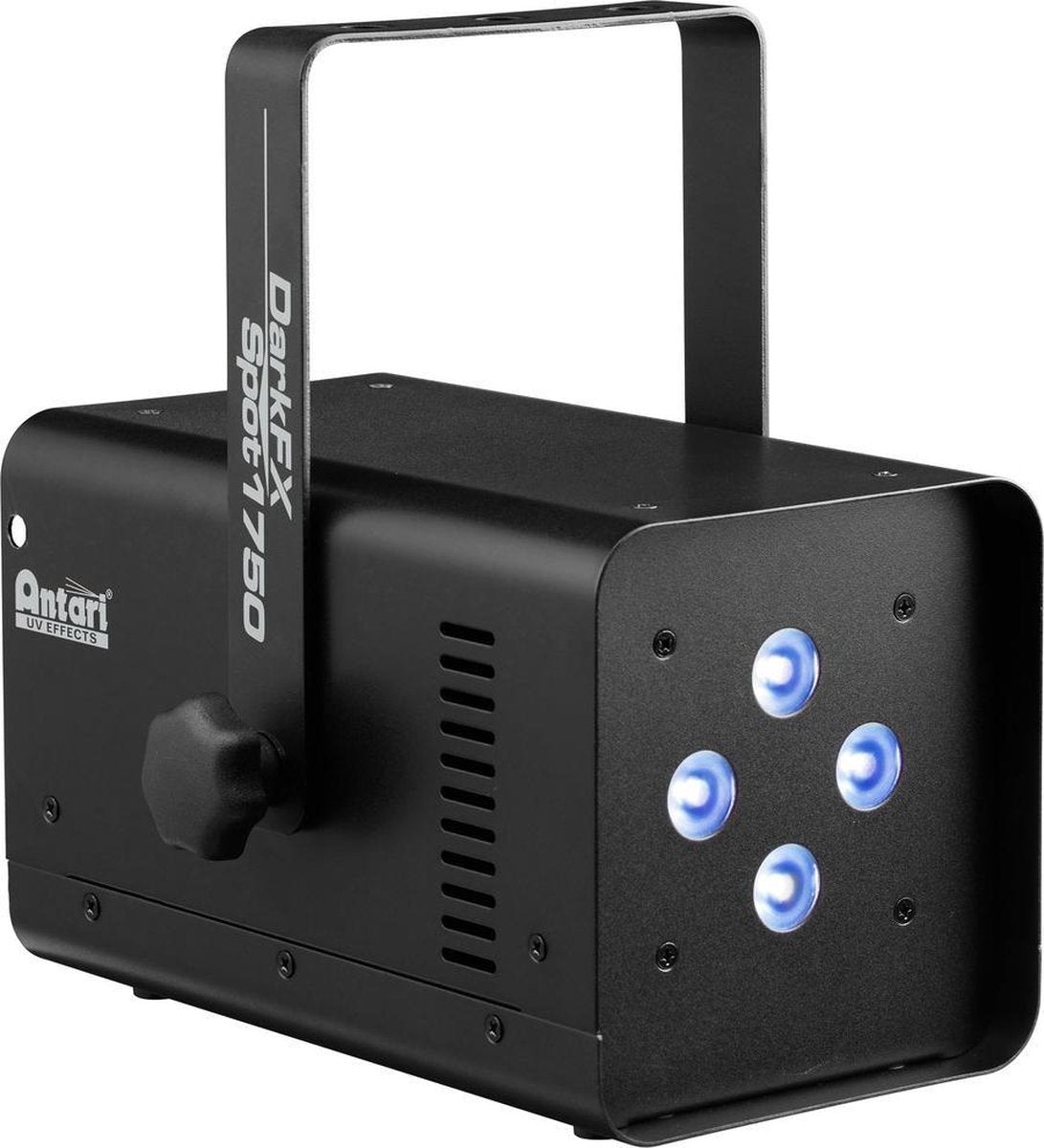

Antari DarkFX Spot 1750 is an efficient high-output and low-power consumption UV LED spot that delivers a peak wavelength of 365 nm and radiant flux output of 19,080 mW at full intensity with minimum visible light. This ensures all UV-reactive materials reflect perfectly with stunningly bright and vivid colors.

Equipped with 4 x 16 W high-power UV LEDs, it features a 20° narrow beam angle, flicker-free operation, and special optics to prevent wear degradation from high UV exposure. This IP20-rated LED spot comes with an aluminium housing with an adjustable bracket for versatile mounting options.
The DarkFX Spot 1750 is operated in one of two modes: Either in DMX mode with 2 channels via the 5-pin XLR connectors or in stand-alone mode via the LCD display and the 4 operating buttons. Use the powerCON input to connect it to the mains.

PRO DMX UV spot with 4 x 16 W UV LED, deep wavelength (365 nm)

High-efficiency UV LED
Peak wavelength at 365 nm
Minimum visible light
High output at full intensity
Special optics will not degrade due to high UV exposure
20° narrow beam angle
Addressing and setting via control panel with LCD
PowerCon input and output
Effect: UV
Control: Stand-alone; DMX
LED: 16 x High power standard 16 W UV Homogenous colormix
Power supply:
100-240 V AC, 50/60 Hz

LED type:
16 W UV LED

LED number:
4

DMX channels:
2

DMX connection:
5-pin XLR

Refresh frequency:
600 Hz

Color range:
365 nm

Ecodesign regulation:
Yes

Special product:
Not designed for household room illumination

Purpose:
Show effect lighting

IP classification:
IP20

Weight:
3,26 kg

Power consumption:
72 W

Lamp type:
LED lamp

Beam angle:
20° Mono colour

LED type:
High power standard 16 W UV
