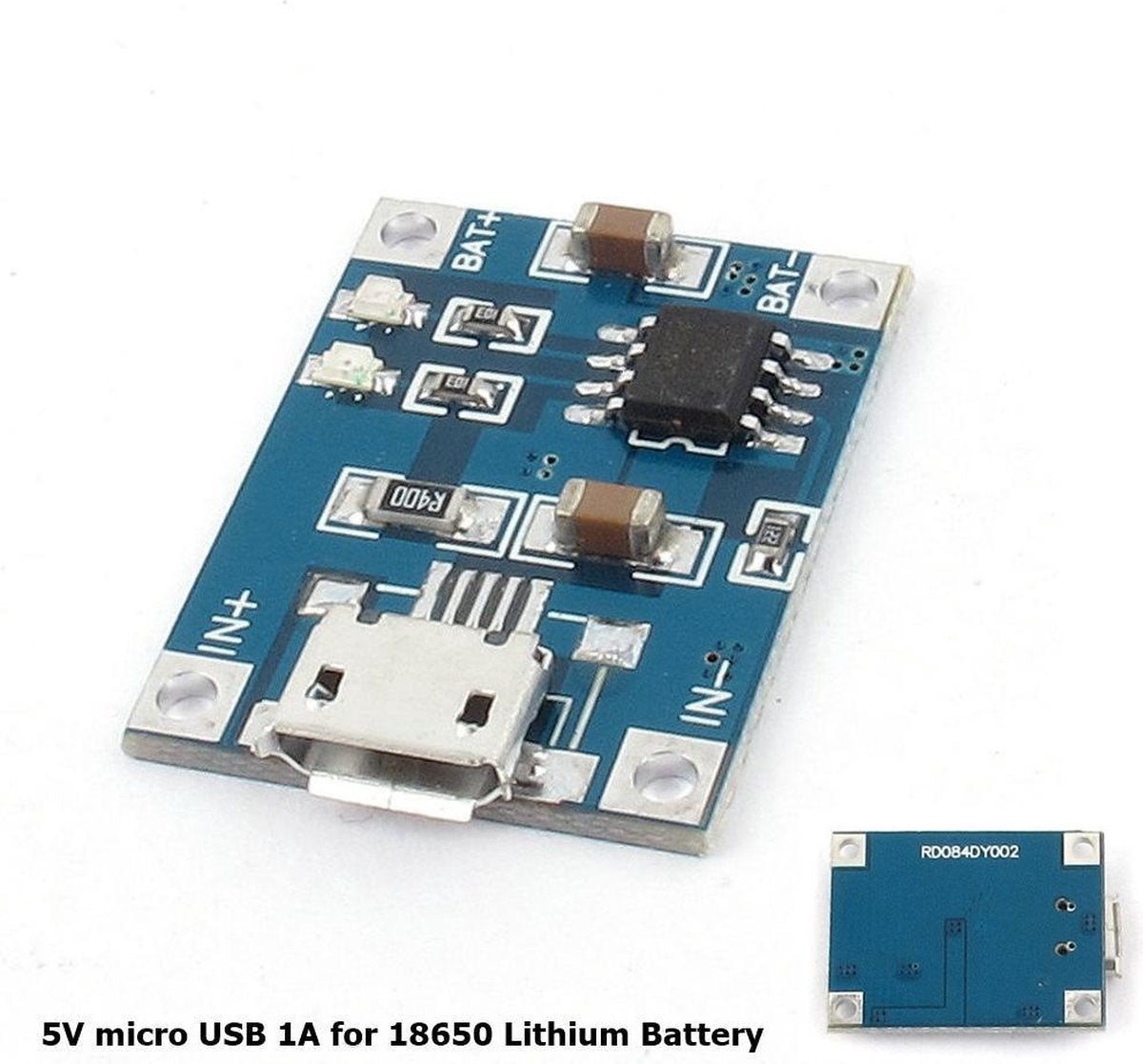

5V micro USB 1A Lithium Battery 18650 Charging Board Charger Module LED TP4056

Description:

This module to be used with a Micro USB 5V to charge a Lithium ion battery. With LED indication.
With: IC TP4056 module. If you want to change the charging current, you can change the resistor as in the table.
Charge module: Linear charging.
Current:1A adjustable. Please see the below table for changing the charging current by changing the Rprog resistor
Charge precision: 1.5%.
Input voltage: 4.5V-5.5V.
Full charge voltage: 4.2V.
Led indicator- red is charging blue is full charged.
Input interface: Micro USB.
Work temperature: -10 to +85C
Inversed polarity protection: NO.
Size: 25X19X10mm.
